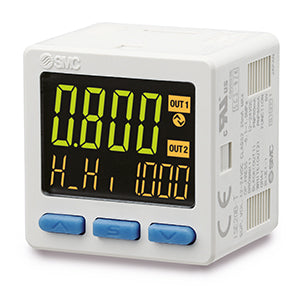

SMC ISE20BR01W (ISE20B-R-01-W) - Digital Pressure Switch, R1/8 Port, NPN 2-Output Switch

SMC ISE20BR01W Digital Pressure Switch — NPN 2-output plus analog voltage, R1/8 port, with lead wire. ISE20B 3-screen high-precision digital pressure switch for positive pressure, rated range -0.100 to 1.000 MPa. Output R: NPN open collector 2 outputs plus analog voltage output. Piping 01: R1/8. Option W: supplied with lead wire with connector (waterproof cover). 12 to 24 VDC, current consumption 35 mA or less, display accuracy +/-2% F.S. +/-1 digit, IP65 enclosure.

MPN: ISE20B-R-01-W · SKU: ISE20BR01W

ISE20B-R-01-W Applications

The ISE20B-R-01-W is the ISE20B-R-01 supplied with a factory lead wire and connector, ready to wire into PLC-based pneumatic control. It reads positive pressure from -0.1 to 1 MPa and gives NPN dual switch outputs plus an analog voltage signal for vacuum-pickup checks, clamp confirmation, and pressure alarms. The R1/8 port fits manifolds; the 3-screen display eases setup. IP65 and anti-chattering suit industrial environments.

ISE20B-R-01-W Specifications
