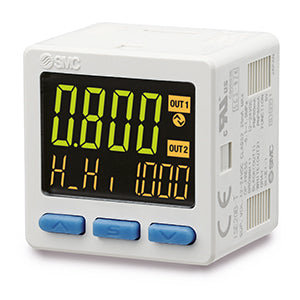

SMC ISE20BR01 (ISE20B-R-01) - Digital Pressure Switch, R1/8 Port, NPN 2-Output Switch

SMC ISE20BR01 Digital Pressure Switch — NPN 2-output plus analog voltage, R1/8 port. ISE20B 3-screen high-precision digital pressure switch for positive pressure, rated range -0.100 to 1.000 MPa. Output R: NPN open collector 2 outputs plus analog voltage output. Piping 01: R1/8. 12 to 24 VDC, current consumption 35 mA or less, display accuracy +/-2% F.S. +/-1 digit, repeatability +/-0.2% F.S. +/-1 digit, IP65 enclosure. LCD 3-screen display, response time 2.5 ms or less with anti-chattering.

MPN: ISE20B-R-01 · SKU: ISE20BR01

ISE20B-R-01 Applications

The ISE20B-R-01 monitors positive air or gas pressure from -0.1 to 1 MPa in pneumatic automation. Its NPN dual switch outputs plus analog voltage output drive PLC inputs and provide a continuous signal for vacuum-cup pickup verification, clamp confirmation, or supply-pressure alarms. The 3-screen display shows pressure, set value, and units simultaneously, while the R1/8 threaded port suits manifolds and blocks. IP65 rating and anti-chattering suit factory-floor use.

ISE20B-R-01 Specifications
