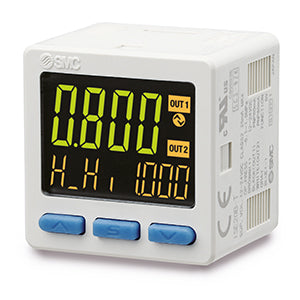

SMC ISE20AT01J (ISE20A-T-01-J) - Digital Pressure Switch, PNP 2 Outputs with Analog Voltage Output, R1/8 Port

SMC ISE20AT01J Digital Pressure Switch — 2 outputs plus analog VOLTAGE output, R1/8 port, 5-core connector lead. ISE20A 3-screen, 3-colour display high-precision digital pressure switch for positive pressure. Rated pressure range -0.1 to 1 MPa. PNP open collector 2 outputs plus analog voltage output. R1/8 port. Supplied with lead wire and connector (5-core, 2 m). Unit selection function. Simple 3-step setting. IP40..

MPN: ISE20A-T-01-J · SKU: ISE20AT01J

ISE20A-T-01-J Applications

The ISE20A-T-01-J extends the ISE20 platform with two PNP switch outputs plus an analog voltage output, letting one sensor drive threshold logic and feed a continuous voltage signal to a PLC analog card or datalogger. Rated -0.1 to 1 MPa with an R1/8 port and a factory 5-core 2 m connector lead, it suits closed-loop pressure control, trend monitoring and dual-set-point interlocks in pneumatic clamping, gripping and blow-off systems. The 3-screen display eases setup and diagnostics.

ISE20A-T-01-J Specifications
