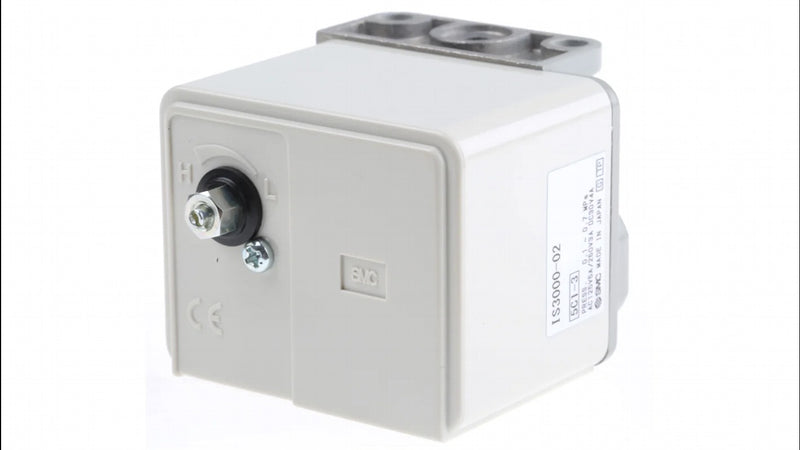

SMC IS300002 (IS3000-02) - Pressure Switch, Rc1/4 Port, 0.1-0.7 MPa

SMC IS300002 Pressure Switch — Micro switch type, Rc1/4. IS3000-series micro-switch-type pneumatic pressure switch. Piping Rc1/4; pressure adjustment range 0.1 to 0.7 MPa; max. operating pressure 0.8 MPa; proof pressure 1.0 MPa; error of scale +/-0.1 MPa; hysteresis 0.05 MPa or less; repeatability +/-0.05 MPa; switch ratings 30 VDC/4 A, 125 VAC/5 A, 250 VAC/3 A; enclosure equivalent to IP40 (IEC60529); ambient/fluid temperature -5 to 60 C; long life 10 million cycles (piston construction); weight 0.15 kg.

MPN: IS3000-02 · SKU: IS300002

IS3000-02 Applications

The IS3000-02 is a micro-switch-type pneumatic pressure switch with Rc1/4 piping and an adjustable 0.1 to 0.7 MPa set range. Its piston construction gives a 10-million-cycle service life and its micro switch handles both low signal loads and line-voltage loads (up to 250 VAC/3 A, 30 VDC/4 A), so it can drive PLC inputs, relays, solenoids or alarms directly. Used for supply-pressure monitoring, low-pressure alarms and pneumatic interlocks in machinery and process air lines.

IS3000-02 Specifications
