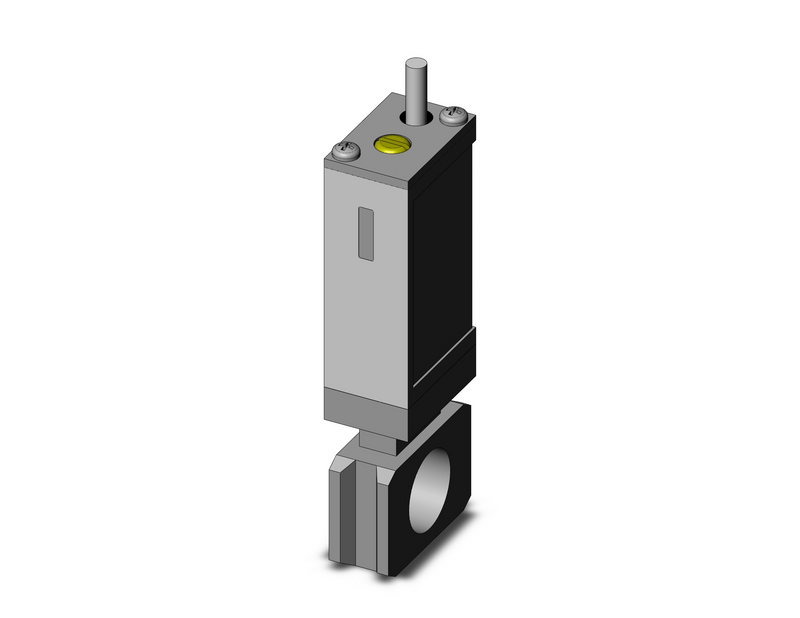

SMC IS10M206LA (IS10M-20-6L-A) - Pressure Switch, 0.1-0.6 MPa reed switch, modular FRL pressure switch

SMC IS10M206LA Pressure Switch — Reed switch, FRL spacer mount, 0.1-0.6 MPa. IS10-series reed-switch pressure switch with spacer for modular F.R.L. mounting, body size 20 (AC20-A applicable). Fluid air/inert gas; proof pressure 1.0 MPa; max. operating pressure 0.7 MPa; set pressure range option 6 = 0.1 to 0.6 MPa; contacts 1a (reed); error of scale +/-0.05 MPa or less; hysteresis fixed 0.08 MPa or less; repeatability +/-0.05 MPa or less; enclosure equivalent to IP40; up to 100 V AC/DC; L = 3 m lead wire. Grommet lead, analog scale indicator.

MPN: IS10M-20-6L-A · SKU: IS10M206LA

IS10M-20-6L-A Applications

The IS10M-20-6L-A is a reed-switch mechanical pressure switch that mounts on a spacer clamped inline with SMC modular F.R.L. units (body size 20, AC20-A). It gives a contact output when line pressure reaches the set point, adjustable over the 0.1 to 0.6 MPa range with a linear scale indicator, and ships with a 3 m grommet lead wire. Used to confirm supply-air presence or trigger alarms/interlocks directly at the air-preparation station without separate piping.

IS10M-20-6L-A Specifications
