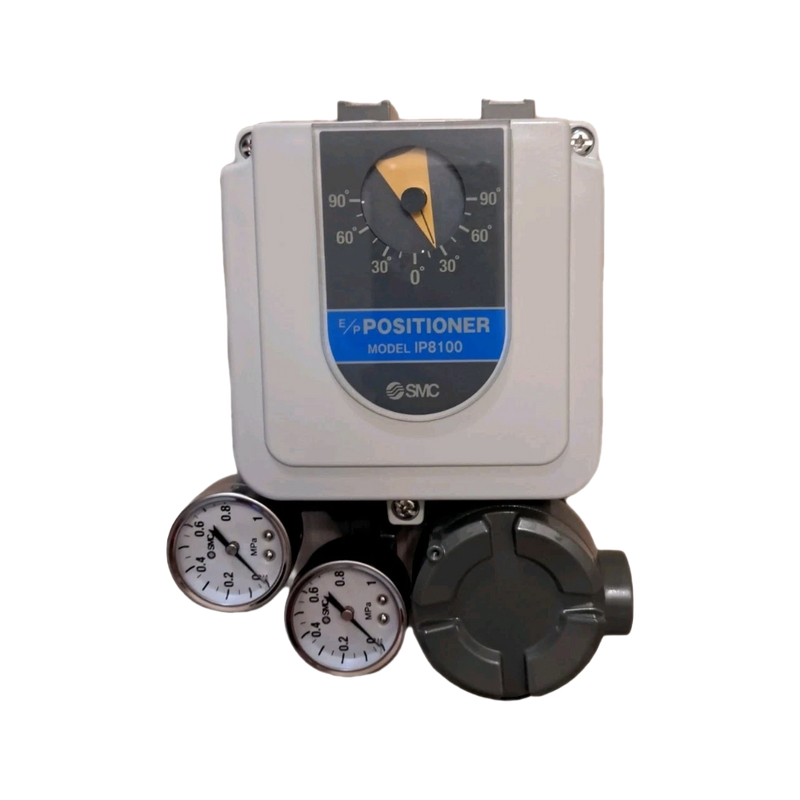

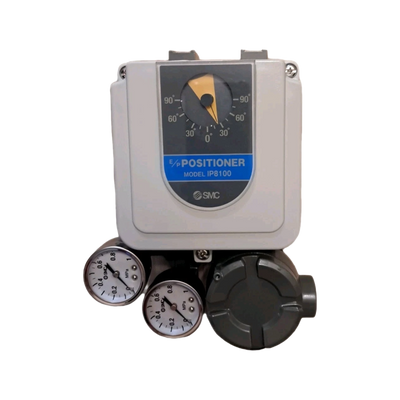

SMC IP8100031JX83Q (IP8100-031-J-X83-Q) - Electro-Pneumatic Positioner, Rotary Type, NPT1/4 Air Port, 4-20 mA Output

SMC IP8100031JX83Q Electro-Pneumatic Positioner, Rotary Type — rotary type with NPT1/4 air port (-X83) and 4 to 20 mA opening current transmission. Rotary type electro-pneumatic positioner, Input signal 4 to 20 mA DC, Opening current transmission 4 to 20 mA DC (positive operation), Air connection NPT1/4 female (-X83), Electrical connection G1/2, Pressure gauge 1.0 MPa, Enclosure JIS F8007 IP65 (IEC 60529), TIIS flameproof construction Exd II BT5 with terminal box, CE/UKCA compliant (Q).

MPN: IP8100-031-J-X83-Q · SKU: IP8100031JX83Q

IP8100-031-J-X83-Q Applications

The SMC IP8100031JX83Q is used to position rotary control valves - butterfly, ball and plug valves - from a 4 to 20 mA DC controller signal in process plants. It is suited for chemical and petrochemical dosing loops, oil and gas skids, and water treatment flow control, and its TIIS flameproof terminal box and IP65 enclosure allow installation in hazardous and washdown areas. The made-to-order X83 variant supplies an NPT1/4 female air port for North American piping standards, while the built-in 4 to 20 mA opening current transmission feeds valve position back to the DCS without a separate transmitter.

IP8100-031-J-X83-Q Specifications
