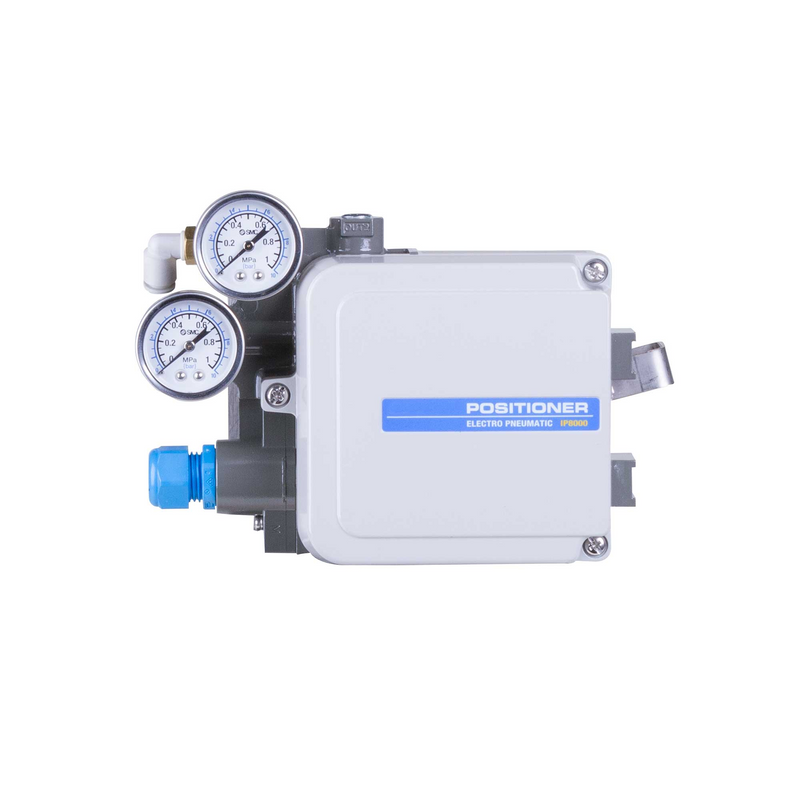

SMC IP8000030X14 (IP8000-030-X14) - Electro-Pneumatic Positioner, ATEX Intrinsically Safe Lever Type, 1.0 MPa Pressure Gauge
SMC IP8000030X14 Electro-Pneumatic Positioner — ATEX intrinsically safe (-X14) lever type with 1/4 NPT air connection, M20 x 1.5 conduit and 1.0 MPa pressure gauge. Input signal 4 to 20 mA DC, Supply pressure 0.14 to 0.7 MPa, Stroke 10 to 85 mm, Enclosure IP65, ATEX II 2G Ex h ib IICT5..T6 Gb.
MPN: IP8000-030-X14 · SKU: IP8000030X14
IP8000-030-X14 Applications
The SMC IP8000030X14 is the ATEX-compliant (-X14) variant of the IP8000 lever type electro-pneumatic positioner, adding category 2 intrinsically safe certification, a 1/4 NPT air connection, an M20 x 1.5 conduit port and a blue cable gland over the standard IP8000. It converts a 4 to 20 mA DC control signal into a proportional pneumatic output to position linear control valve actuators. Typical applications are throttling control valves in oil and gas, petrochemical, chemical and pharmaceutical plants where the positioner must be mounted inside a classified hazardous area.
IP8000-030-X14 Specifications
| Brand | SMC | Manufacturer Part No. | IP8000-030-X14 |
| Product Type | Electro-Pneumatic Positioner | Series | IP8000 / IP8100 (IP8000-X14) |
| Positioner Type | 000 - Electro-pneumatic lever type | Pressure Gauge | 3 - 1.0 MPa |
| Accessories A/B/C/D | None (standard) | Option | Nil - Standard (not L low temperature, not W indicator plate) |
| Made-to-Order Suffix | X14 - ATEX directive compliance and connection | ATEX Classification | II 2G Ex h ib IICT5..T6 Gb, category 2 intrinsically safe explosion-proof |
| Input Signal | 4 to 20 mA DC | Supply Pressure | 0.14 to 0.7 MPa |
| Stroke (Lever Type) | 10 to 85 mm (allowable deflection angle 10 to 30 deg) | Repeatability | Within +/-0.5% F.S. |
| Air Connection Port | 1/4 NPT | Conduit Connection Port | M20 x 1.5, with blue cable gland |
| Enclosure | JIS F8007, IP65 (conforms to IEC Pub.60529) | Ambient Temperature | -20 to +80 C (T5) / -20 to +60 C (T6) |
| Body Material | Aluminum diecast, baking finish with denatured epoxy resin |
