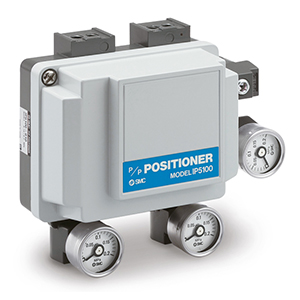

SMC IP5100031 (IP5100-031) - Pneumatic-Pneumatic Positioner, Rc1/4 rotary cam feedback

SMC IP5100031 Pneumatic-Pneumatic Positioner — Rotary cam feedback, with 1 MPa gauge. IP5000/5100-series pneumatic-pneumatic positioner, IP5100 rotary type (cam feedback). Supply pressure 0.14 to 0.7 MPa; input pressure 0.02 to 0.1 MPa; standard stroke 60 to 100 degrees; sensitivity within 0.5% F.S.; linearity within +/-2% F.S.; hysteresis within 1% F.S.; repeatability within +/-0.5% F.S.; air consumption 11 L/min (ANR) or less at SUP 0.4 MPa; output flow 200 L/min (ANR) or more at SUP 0.4 MPa; air connection Rc1/4; enclosure JIS F8007 IP55; ambient/fluid temperature -20 to 80 C; weight approx. 1.2 kg. Suffix -031 = input 0.02-1 MPa, 1 MPa gauge, opening indicated.

MPN: IP5100-031 · SKU: IP5100031

IP5100-031 Applications

The IP5100-031 is a rotary-type pneumatic-pneumatic positioner using cam feedback to position quarter-turn actuators over a 60 to 100 degree stroke in proportion to a 0.02 to 0.1 MPa input signal. Supply pressure is 0.14 to 0.7 MPa with Rc1/4 connections and an IP55 (JIS F8007) enclosure for field use. Sensitivity is within 0.5% F.S. with 200 L/min output flow, making it suitable for accurate control of rotary control valves, dampers and ball valves in process automation.
