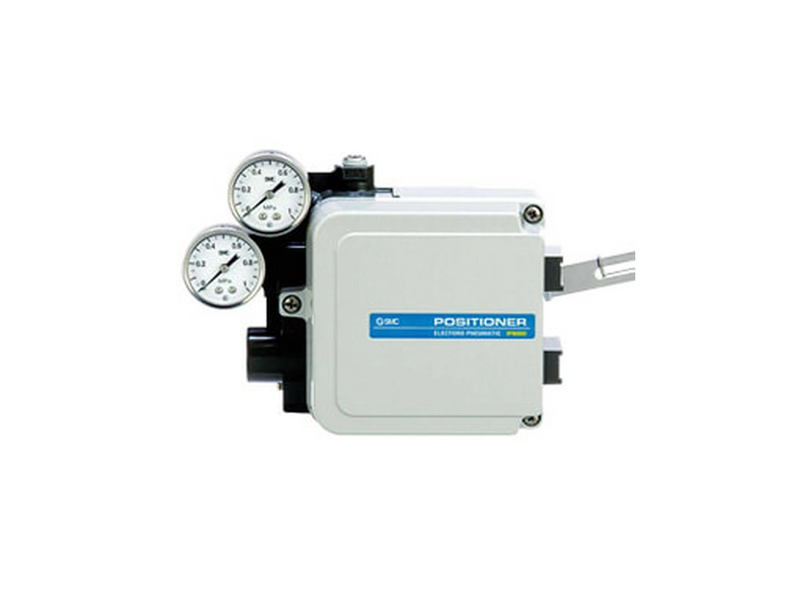

SMC IP310031 (IP310-031) - Pneumatic Positioner, Rc1/4 rotary type

SMC IP310031 Pneumatic Positioner — Rotary type, with gauges. IP300-series pneumatic positioner, IP310 rotary type. Supply pressure 0.14 to 0.7 MPa; input signal 0-0.2 MPa; output 0-1 MPa; air connection Rc1/4. -031 supplied with pressure gauges. Converts a pneumatic input signal into proportional actuator position for rotary control valves. Weight approx. 2.6 kg.

MPN: IP310-031 · SKU: IP310031

IP310-031 Applications

The IP310-031 is an IP300-series pneumatic positioner (rotary type) that positions a rotary pneumatic actuator in proportion to a pneumatic input signal. With a supply pressure of 0.14 to 0.7 MPa and a 0-0.2 MPa signal, it drives the actuator and feeds back shaft position to hold the commanded angle against load. Supplied with pressure gauges (-031) and Rc1/4 connections, it is used for accurate throttling control of quarter-turn valves and dampers in process and utility air systems.

IP310-031 Specifications
