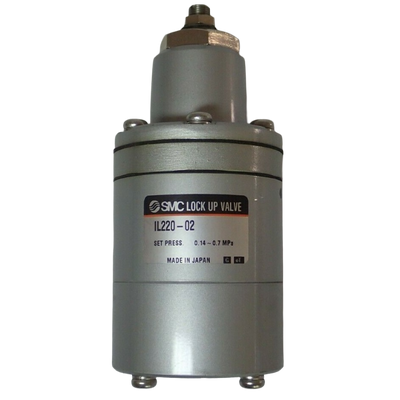

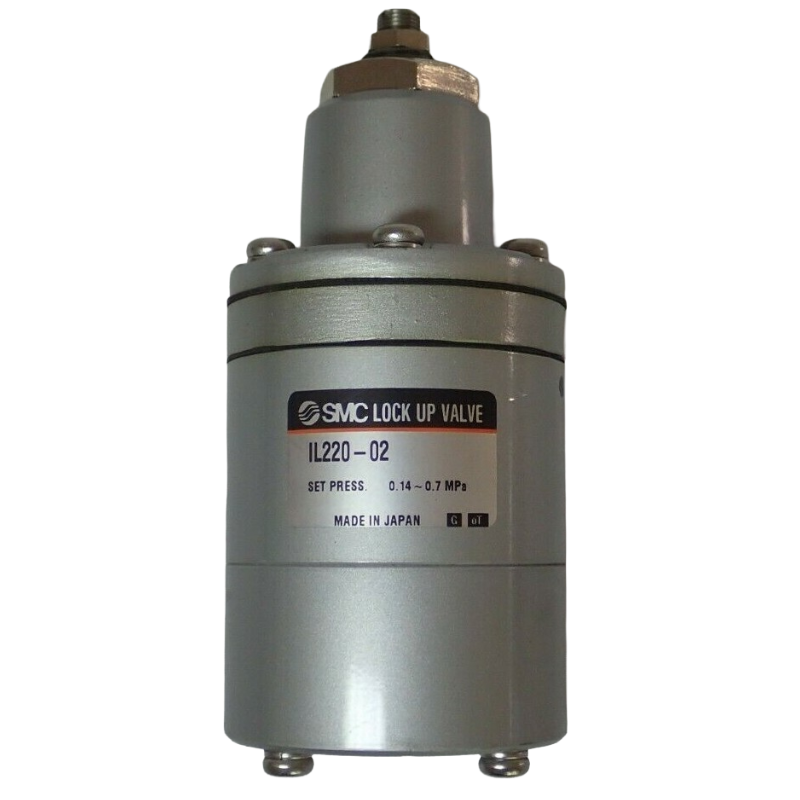

SMC IL220N02 (IL220-N02) - Lock-Up Valve, 3 Port Action, NPT 1/4 Port

SMC IL220N02 Lock-Up Valve — 3 port action (220) with NPT 1/4 ports rather than G or Rc thread. Signal pressure max. 1.0 MPa, Set pressure range 0.14 to 0.7 MPa, Shut-off circuit pressure max. 0.7 MPa, Differential 0.01 MPa, Weight 0.7 kg.

MPN: IL220-N02 · SKU: IL220N02

IL220-N02 Applications

The SMC IL220N02 is the 3 port, NPT-threaded member of the IL201/211/220 lock-up valve family: instead of simply retaining pressure like the single acting IL201, it switches the supply port when a fault occurs. It is installed in air-operated process control lines to protect against air source or supply piping failure, changing over from IN1 to IN2 so the operating area keeps a supply until the main air source is restored. Typical uses are backup air changeover for control valve actuators in refineries, chemical plants and gas processing sites piped to NPT standards.

IL220-N02 Specifications
