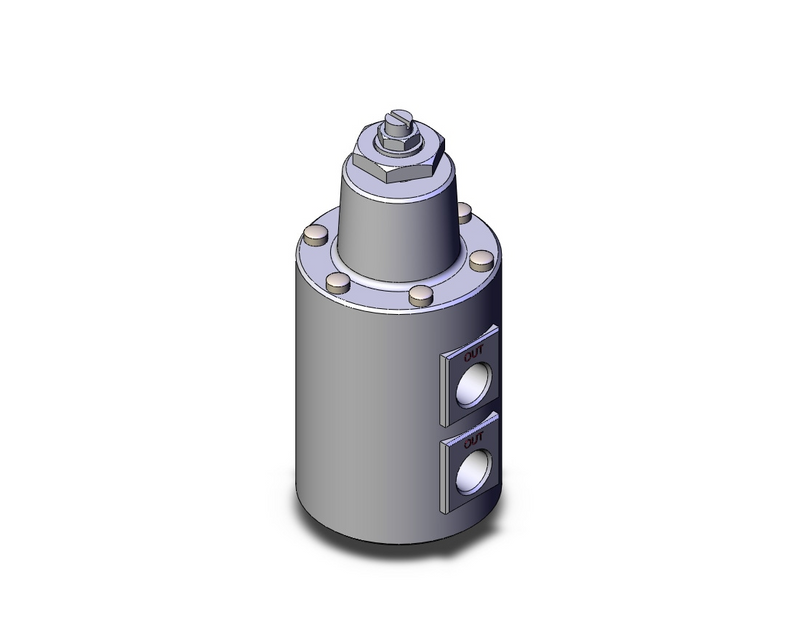

SMC IL211F02 (IL211-F02) - Lock-Up Valve, G1/4 port

SMC IL211F02 Lock-Up Valve — Double acting, G1/4 port. Double acting lock-up valve, IL200 series. Signal pressure max. 1.0 MPa; set pressure range 0.14 to 0.7 MPa (maintain 0.1 MPa or more differential between signal and set pressure); shut-off circuit pressure max. 0.7 MPa; lock differential 0.01 MPa; port size G1/4 (thread type F = G); ambient/fluid temperature -5 to 60 degrees C; weight 0.64 kg. Body/pilot body/bonnet aluminum alloy. Retains pressure at the operating area as emergency operation until the air source is recovered.

MPN: IL211-F02 · SKU: IL211F02

IL211-F02 Applications

The IL211-F02 is a double-acting lock-up valve used in air-operated process control lines. If the air source or supply piping fails, the valve holds the last operating pressure at the actuator until supply is restored, preventing uncontrolled actuator movement. Signal pressure above the set point opens the IN-to-OUT path; if signal drops below the set pressure the valve closes and locks. Suited to fail-freeze protection of pneumatic control valves and positioner-driven actuators in G-thread (G1/4) piping systems.
