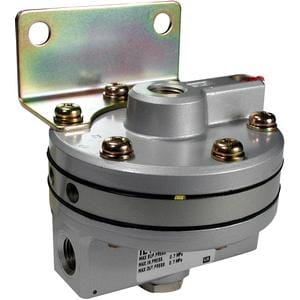

SMC IL100N02SL (IL100-N02-SL) - Booster Relay, 1/4 NPT port, 1:1 pneumatic booster relay

SMC IL100N02SL Booster Relay — 1/4 NPT booster relay, copper-free / low-temperature spec. Series IL100 booster relay; 1:1 pressure ratio; supply pressure max 1.0 MPa, input pressure max 0.7 MPa, output pressure max 0.7 MPa; air consumption 3 L/min (ANR) or less at OUT = 0.5 MPa; linearity within +/-1%, hysteresis within 1%; port size 1/4 (N02, NPT thread); suffix SL = copper-free / low-temperature (-30 to 60 C); weight 0.56 kg.

MPN: IL100-N02-SL · SKU: IL100N02SL

IL100-N02-SL Applications

The IL100-N02-SL is a 1:1 pneumatic booster relay used when the piping between instrumentation and the operating point is long or the operating area has large capacity, accelerating actuation speed considerably by converting a low-volume signal into a high-volume output at equal pressure. The copper-free, low-temperature (SL) specification suits applications avoiding copper contamination and cold environments down to -30 C, with 1/4 NPT porting for instrumentation and process-control air lines.

IL100-N02-SL Specifications
