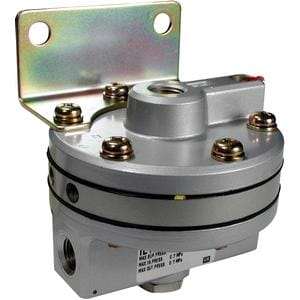

SMC IL10003ST (IL100-03-ST) - Booster Relay, Rc 3/8 Port, Copper-Free High-Temperature Type

SMC IL10003ST Booster Relay — Rc 3/8 port with copper-free external parts and high-temperature (-5 to 100 C) construction. Supply pressure max. 1.0 MPa, Input/Output pressure max. 0.7 MPa, Pressure ratio 1:1, Air consumption 3 L/min (ANR) or less, Weight 0.56 kg.

MPN: IL100-03-ST · SKU: IL10003ST

IL100-03-ST Applications

The SMC IL10003ST is the copper-free, high-temperature version of the IL100 booster relay, rated to 100 C where the standard IL100 stops at 60 C. It is used in air-operated process control loops where the piping distance between the instrument and the operating area is long, or where the actuator has a large capacity, and the 1:1 booster accelerates actuation speed considerably. Typical uses are amplifying positioner output to large diaphragm and piston actuators, boosting signal lines on control valves, and driving remote pneumatic actuators. The copper-free specification suits ammonia, electronics and semiconductor plants where copper contamination must be avoided.

IL100-03-ST Specifications
