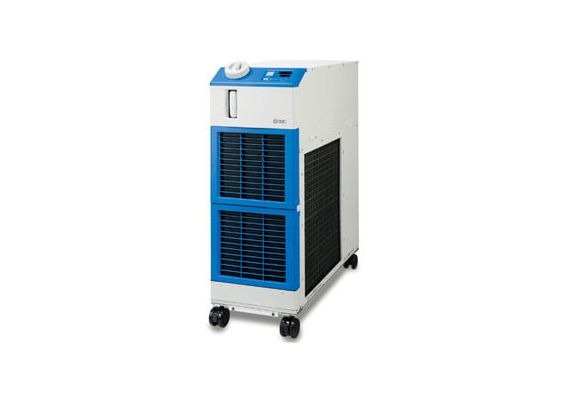

SMC HRSH090AF20MS (HRSH090-AF-20-MS) - Thermo-chiller, Air-cooled Refrigeration, 9.5 kW Cooling Capacity
SMC HRSH090AF20MS Thermo-chiller — DI (deionized) water piping with CE/UL compliance. Air-cooled refrigeration, 9.5 kW cooling capacity (air-cooled), G piping with Rc-G conversion fitting, 3-phase 200 VAC supply, DI water piping compatible.
MPN: HRSH090-AF-20-MS · SKU: HRSH090AF20MS
HRSH090-AF-20-MS Applications
The SMC HRSH090AF20MS is used in semiconductor, machine tool, laser and industrial process cooling where a circulating fluid must be held at a stable temperature. Its deionized-water piping option suits ultrapure water loops in semiconductor and electronics fabrication, while the inverter-driven refrigeration circuit suits laser resonators and spindle cooling. Conforming to CE/UL standards, it is well suited to export machinery. The inverter type excels because it modulates compressor output to the actual heat load, cutting energy use and holding tighter temperature stability than fixed-speed chillers.
HRSH090-AF-20-MS Specifications
| Brand | SMC | Manufacturer Part No. | HRSH090-AF-20-MS |
| Product Type | Thermo-chiller (Inverter Type) | Series | HRSH090 Series Thermo-chiller Inverter Type |
| Cooling Capacity | 090 - Air-cooled: 9.5 kW, Water-cooled: 11.0 kW | Cooling Method | A - Air-cooled Refrigeration |
| Pipe Thread Type | F - G (With Rc-G Conversion Fitting) | Power Supply | 20 - 3-Phase 200 VAC (50 Hz), 3-Phase 200 to 230 VAC (60 Hz) |
| Option a | None | Option b | None |
| Option c | M - Applicable To DI Water (Deionized Water) Piping | Option d | S - Conforming To CE/UL Standards |
| Option e | With Unit Switching Function | Source | SMC WEB Catalog part number HRSH090-AF-20-MS |
