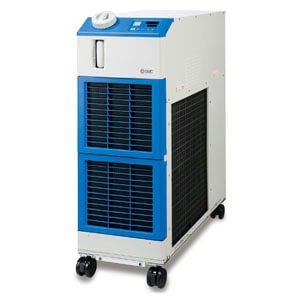

SMC HRS050AF20M (HRS050-AF-20-M) - Thermo-chiller, 4700/5100 W air-cooled

SMC HRS050AF20M Thermo-chiller — 4700/5100 W air-cooled, single-phase 200-230 VAC, DI/pure-water piping option. SMC HRS050 compact thermo-chiller (recirculating fluid chiller). Cooling capacity 4700/5100 W (50/60 Hz) air-cooled refrigeration. Set temperature range 5 to 40 degrees C, temperature stability +/-0.1 degrees C. Power supply single-phase 200 to 230 VAC (50/60 Hz). F option: G-thread conversion fitting set; M option: pure/deionized water piping specification.

MPN: HRS050-AF-20-M · SKU: HRS050AF20M

HRS050-AF-20-M Applications

The HRS050-AF-20-M is a 4700/5100 W air-cooled thermo-chiller with pure/DI-water-compatible piping, holding coolant from 5 to 40 degrees C at +/-0.1 degrees C stability on single-phase 200-230 VAC. It suits high-purity cooling loops for lasers, semiconductor and analytical equipment where clean coolant and reliable heat removal are required.

HRS050-AF-20-M Specifications
