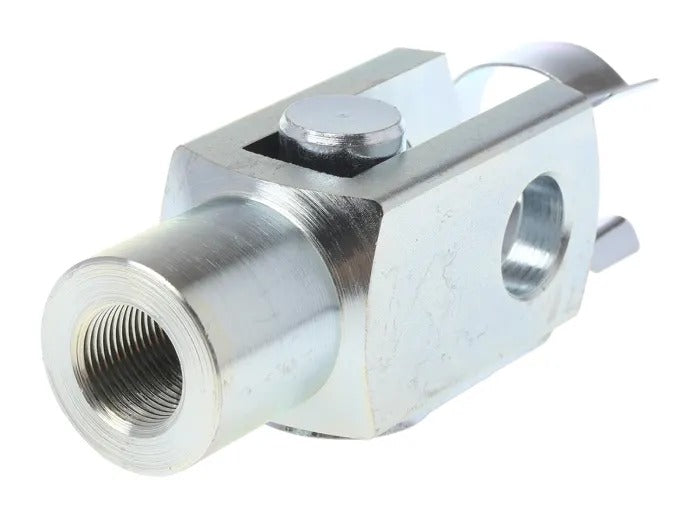

SMC GKM2040 (GKM20-40) - Rod Clevis, ISO 8140 Standard, Zinc Chromate Plated Steel

SMC GKM2040 Rod Clevis — ISO 8140 rod clevis for C96/CP96 ISO 15552 cylinders. Piston rod clevis, Conforming to ISO 8140, Steel with zinc chromate plating, Mounting accessory for C96/CP96 ISO 15552 air cylinders.

MPN: GKM20-40 · SKU: GKM2040

GKM20-40 Applications

The SMC GKM2040 is an ISO 8140 piston rod clevis used to couple the rod end of C96 and CP96 ISO 15552 profile cylinders to a pivoting load. It is suited for swinging-arm and lever mechanisms, clamping and tipping fixtures, and any linkage where the load must articulate rather than travel in a straight line. Pairing it with a matching head-end clevis mount lets the cylinder pivot at both ends, which absorbs misalignment and prevents the side loading that would otherwise wear the rod bushing and seals.

GKM20-40 Specifications
