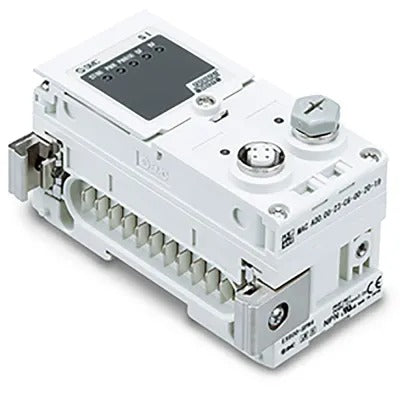

SMC EX600SPN1 (EX600-SPN1) - SI Unit for PROFINET, PROFINET Protocol, PNP 32 Outputs

SMC EX600SPN1 SI Unit for PROFINET — PROFINET SI unit, PNP (negative common) output, max 512 I/O. SMC EX600-SPN1 serial interface (SI) unit for PROFINET, EX600 integrated fieldbus system. Protocol PROFINET IO (PROFINET RT); communication speed 100 Mbps; configuration via GSDML file. I/O occupation area max 512 inputs / 512 outputs. PNP / source, negative common output; 32 outputs. Load: solenoid valve with lamp and surge voltage suppressor 24 VDC 1.0 W or less (SMC). Internal current consumption (control/input power) 120 mA or less. One SI unit connects a valve manifold with up to 32 outputs plus up to 10 input/output/I/O units. Short-circuit protection. Enclosure IP67 (manifold assembly). Operating temperature -10 to 50 C. Storage temperature -20 to 60 C.

MPN: EX600-SPN1 · SKU: EX600SPN1

EX600-SPN1 Applications

The EX600-SPN1 is the PROFINET SI (serial interface) unit that connects an SMC EX600 valve manifold and its I/O modules to a PROFINET IO network at 100 Mbps, mapping up to 512 inputs and 512 outputs and driving 32 solenoid valve outputs (PNP, negative common). Configured by GSDML file, one unit supports a manifold plus up to ten I/O modules, consolidating valve and sensor control onto a single Ethernet drop. IP67 sealing and short-circuit protection suit automotive, packaging and general factory automation on PROFINET.

EX600-SPN1 Specifications
