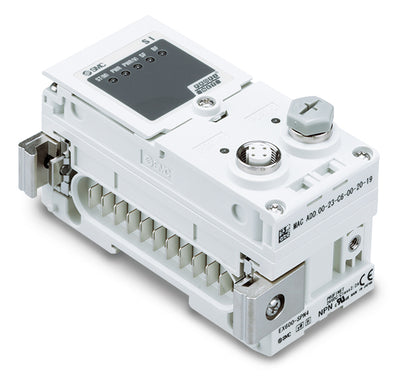

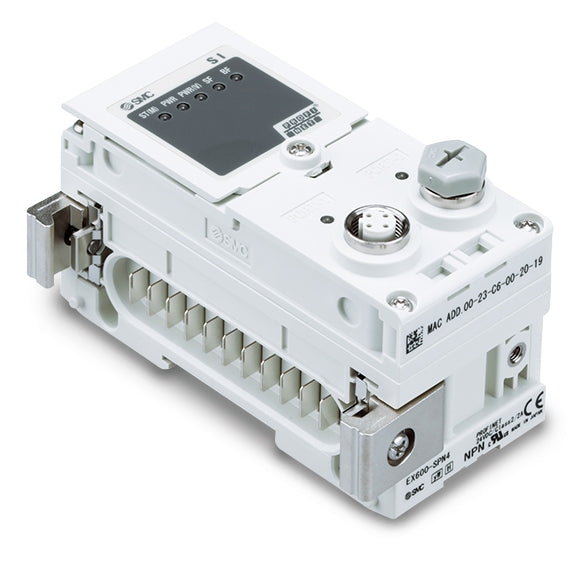

SMC EX600DXPB (EX600-DXPB) - Digital Input Unit, 8 Inputs PNP, 4 x M12 Connector

SMC EX600DXPB Digital Input Unit — 8-input PNP digital input unit, 4 x M12 (5-pin), 2 inputs per connector. SMC EX600-DXPB digital input unit for the EX600 integrated I/O fieldbus system. PNP (negative common) input, 8 input channels arranged as 2 channels per connector across 4 x M12 (5-pin) socket connectors. Rated input current 9 mA or less, input resistance 2.7 kOhm. Power supply voltage 24 VDC Class 2 (2 A). ON voltage/current 17 V or more / 5 mA or more; OFF voltage/current 5 V or less / 1 mA or less. Sensor supply 24 VDC from the control/input power supply; compatible with 2-wire and 3-wire PNP sensors. Short-circuit protection. Enclosure IP67 (manifold assembly). Operating temperature -10 to 50 C. Operating humidity 35 to 85% RH (no dew condensation).

MPN: EX600-DXPB · SKU: EX600DXPB

EX600-DXPB Applications

The EX600-DXPB adds eight PNP digital inputs to an SMC EX600 fieldbus manifold, connecting sensors and auto switches through four M12 5-pin sockets with two channels each. It gathers field signals and passes them over the serial link to the EX600 SI unit, cutting point-to-point wiring on valve manifolds and remote I/O stations. With IP67 sealing and short-circuit protection it suits factory automation, packaging and assembly machines where distributed sensor inputs must be consolidated onto DeviceNet, PROFINET, EtherNet/IP or other networks.

EX600-DXPB Specifications
