SMC EX500S001 SI Unit — SI unit for valve manifold, 16-point output, EX500 gateway serial system. SI (serial interface) unit for SMC valve manifolds within the EX500 gateway-type serial transmission system. Communicates with the GW unit and drives up to 16 solenoid output points per manifold (SV and VQC series valves). Supports single and double solenoids. Enclosure IP65. Up to 4 SI-unit/manifold branches per GW unit for 64-solenoid control.
MPN: EX500-S001 · SKU: EX500S001
EX500-S001 Applications
The EX500-S001 is the SI unit that mounts on an SMC valve manifold (SV or VQC series) in an EX500 gateway-type serial transmission system. It communicates with the EX500 gateway unit and drives up to 16 solenoid outputs, supporting single and double solenoids. Up to four SI units connect to one gateway for 64-solenoid control. IP65 construction suits machine-mounted pneumatic control in packaging, automotive and general factory automation with reduced wiring.
EX500-S001 Specifications
| Brand | SMC | Manufacturer Part No. | EX500-S001 |
| Protocol | EX500 serial transmission | Function | SI unit (valve manifold) |
| Series | EX500 | Outputs | 16 points |
| Enclosure | IP65 |
EX500-S001 Datasheet & Manual
Download Datasheet & ManualSMC EX500S001 · PDF · Official SMC documentTrusted by

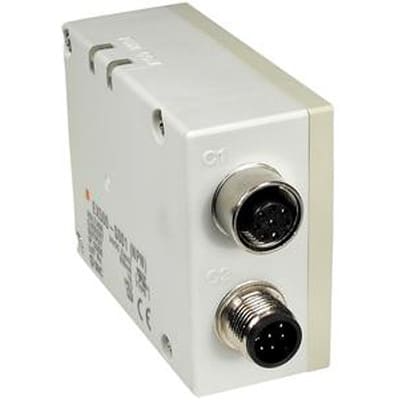

SMC EX500S001 (EX500-S001) - SI Unit, EX500 Serial System
Brand: SMC
