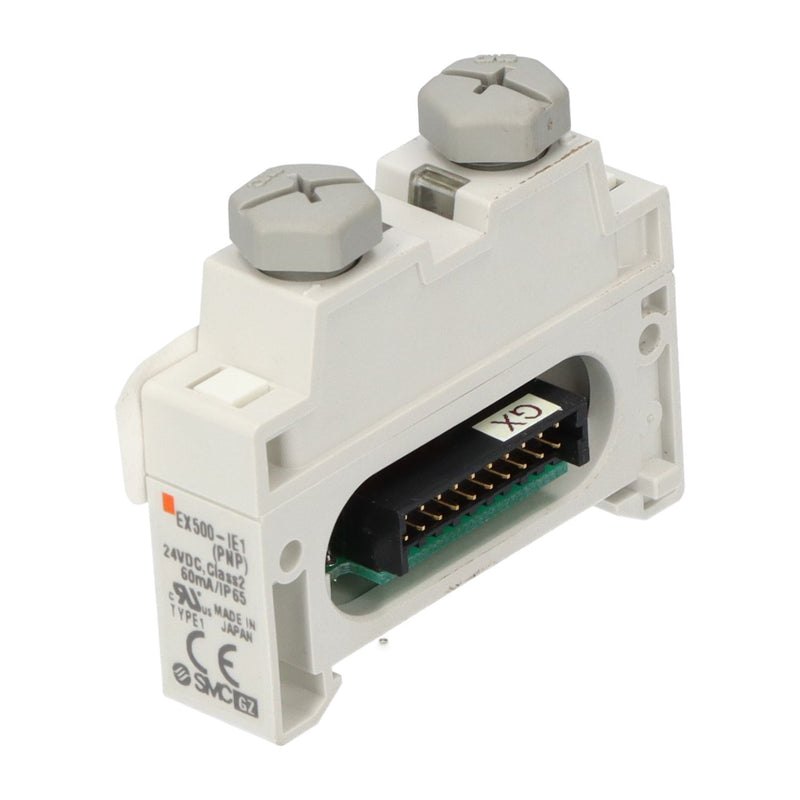

SMC EX500IE1 (EX500-IE1) - Input Block, EX500 Input Block, M8 Connector

SMC EX500IE1 Input Block — Extension input block, M8 connector, 2 inputs, PNP. Extension input block for the EX500 input unit (EX500-IB1) of the gateway-type serial transmission system. 2 input points via M8 3-pin connectors, PNP input. Input device supply 24 VDC. Green LED power indication. Enclosure IP65. Mounts onto the EX500 input manifold base.

MPN: EX500-IE1 · SKU: EX500IE1

EX500-IE1 Applications

The EX500-IE1 is a 2-point extension input block that mounts onto the EX500-IB1 input manifold in an SMC EX500 serial transmission system. It provides two PNP sensor inputs through M8 3-pin connectors with LED power indication and IP65 protection. Multiple blocks build up the manifold's input count. It is used to gather proximity, reed and other 3-wire sensor signals into the fieldbus network on machine-mounted pneumatic automation.

EX500-IE1 Specifications
