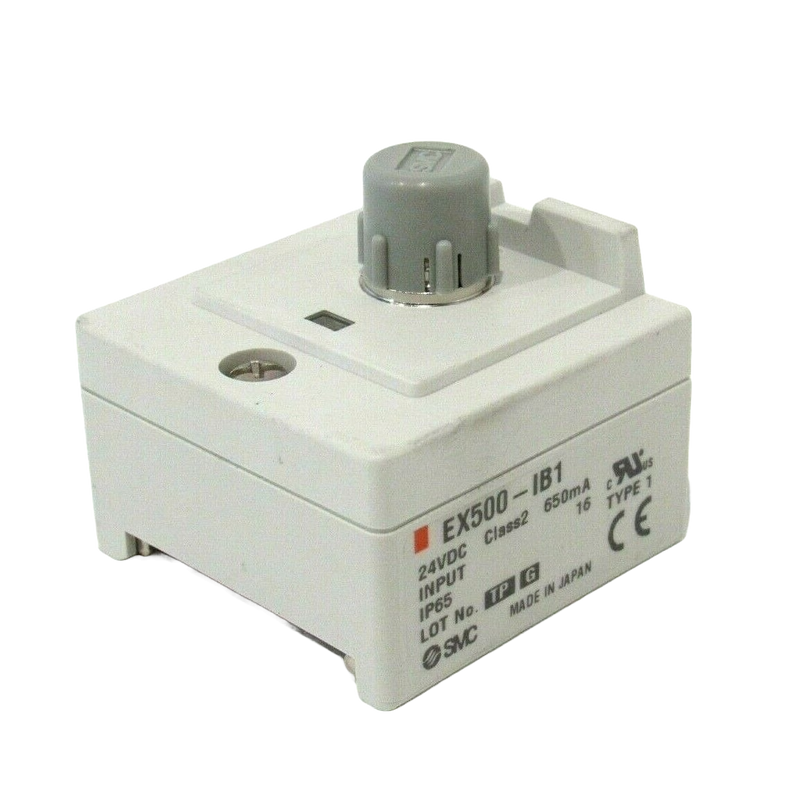

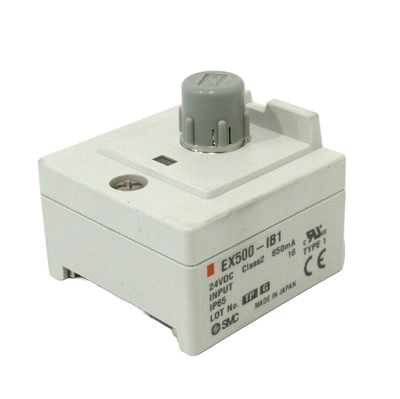

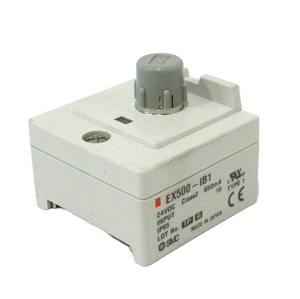

SMC EX500IB1 (EX500-IB1) - Input Manifold Unit, EX500 Input Manifold

SMC EX500IB1 Input Manifold Unit — Input block / input manifold base unit for EX500 serial system, up to 8 input blocks. Input unit (base) for the EX500 gateway-type serial transmission system. Accepts up to 8 input blocks for a maximum of 16 inputs. PNP (source, negative common) input. M12 communication connector to the GW unit. Power supply 24 VDC, input block current 0.5 A max. Enclosure IP67. Supplied with input unit, end block and DIN rail as an input manifold.

MPN: EX500-IB1 · SKU: EX500IB1

EX500-IB1 Applications

The EX500-IB1 is the input manifold base of an SMC EX500 serial transmission system, collecting sensor and switch signals into the fieldbus network. It accepts up to eight input blocks for a maximum of 16 digital inputs, connects to the gateway via an M12 communication connector, and is IP67 rated for machine-mounted use. It is applied in distributed pneumatic and sensor I/O on packaging, automotive and material-handling equipment built around EX500 valve manifolds.

EX500-IB1 Specifications
