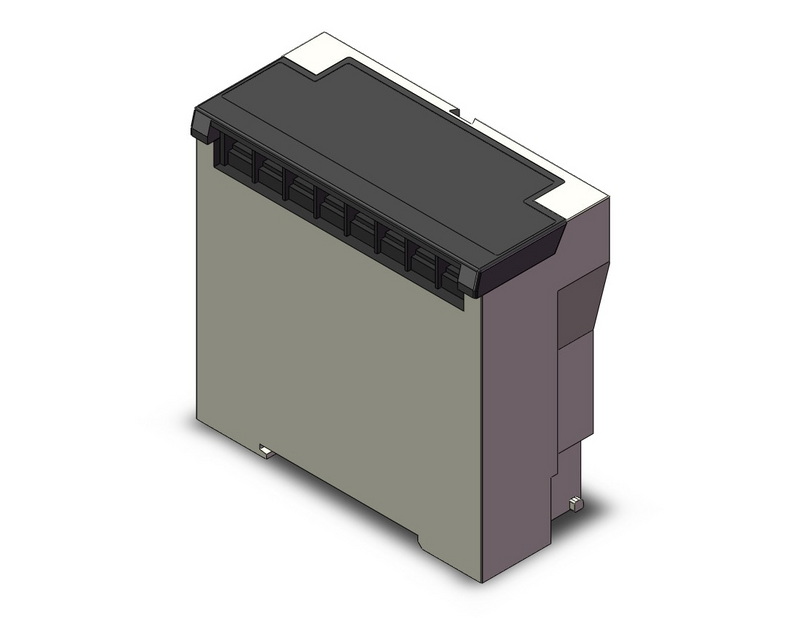

SMC EX120SCS1 (EX120-SCS1) - Serial Interface Unit, CompoBus/S 16-output

SMC EX120SCS1 Serial Interface Unit — CompoBus/S SI unit, 16 outputs, plug-in. EX120 series Fieldbus System (for output) SI unit, Type 1 output type for solenoid valves. Protocol OMRON CompoBus/S; 16 outputs (SCS1); I/O occupation 0/16; plug-in valve interface (0). Output type sink/NPN (positive common); load solenoid valve with surge suppressor 24 VDC 2.1 W or less. Control power 14 to 26.4 VDC, valve power 24 VDC +10/-5%. Enclosure IP20; operating temp 0 to 55 C (8 pts on) / 0 to 50 C (16 pts on); weight 110 g or less. CE/UKCA marking. Compatible with SV1000/2000/3000/4000, VQ1000/2000, SY3000/5000/7000 manifolds.

MPN: EX120-SCS1 · SKU: EX120SCS1

EX120-SCS1 Applications

The EX120-SCS1 is a serial transmission (reduced-wiring) SI unit that connects an SMC manifold solenoid valve block to an OMRON CompoBus/S network, cutting the multi-core wiring normally required to drive each valve. It handles up to 16 outputs with sink/NPN drive and mounts as a plug-in unit to compatible SV, VQ and SY manifolds. Used in machine and line automation to reduce control cabling, ease installation and simplify diagnostics on manifold valve assemblies driven from a PLC over the CompoBus/S serial bus.
