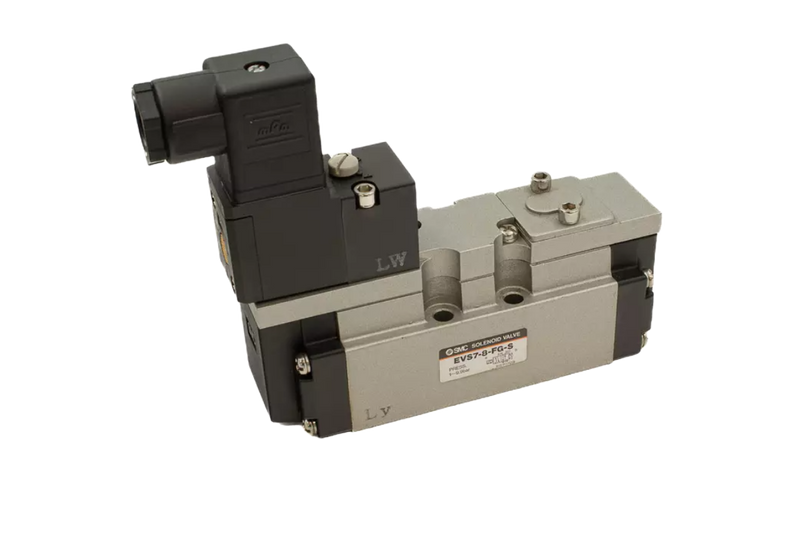

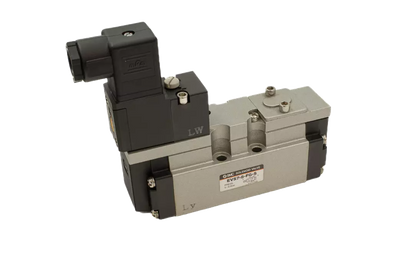

SMC EVS78FGS3CVQ (EVS7-8-FG-S-3CV-Q) - ISO Interface Solenoid Valve, ISO Size 2, Single Solenoid
SMC EVS78FGS3CVQ ISO Interface Solenoid Valve — larger ISO size 2 body with single solenoid. 5-port 2-position ISO 5599-1 (CNOMO) size 2 interface, single solenoid, 24 VDC, metal seal, 58 mm2 effective area, 3140.80 Nl/min.
MPN: EVS7-8-FG-S-3CV-Q · SKU: EVS78FGS3CVQ
EVS7-8-FG-S-3CV-Q Applications
The SMC EVS78FGS3CVQ is the ISO size 2 member of this family, roughly doubling the flow of the size 1 valves at 58 mm2 effective area and 3140.80 Nl/min. That extra capacity suits larger-bore cylinders on presses, palletisers, foundry and heavy process equipment where a size 1 valve would starve the actuator and slow the stroke. Single-solenoid spring return sends the actuator to a defined home position on power loss, which is preferred for guarding and ejector circuits. It mounts on any conforming ISO 5599-1 size 2 sub-plate or manifold, so it interchanges with other makers' size 2 valves.
EVS7-8-FG-S-3CV-Q Specifications
| Brand | SMC | Manufacturer Part No. | EVS7-8-FG-S-3CV-Q |
| Product Type | ISO Interface Solenoid Valve | Series | VS7-8 (VS7-6/8/10 ISO CNOMO Standard Solenoid Valve, Metal Seal) |
| Ordering Source Area Code | E = Europe | Valve Function | FG = 2 Position |
| No. of Solenoids | S = Single Solenoid | Size | 8 = ISO 2 (ISO 5599-1 / CNOMO interface) |
| Rated Voltage | 3 = 24 VDC | Effective Area (with sub-plate) | 58 mm2 |
| Flow Rate (with sub-plate) | 3140.80 Nl/min | Sub-plate Port Sizes Available | 3/8 (A03/B03), 1/2 (A04/B04), 3/4 (A06/B06) |
| Seal Type | Metal Seal | CE-compliant | Q = CE-compliant (protective class I) |
| Note | Sub-plate mounted valve; sub-plate ordered separately. |
