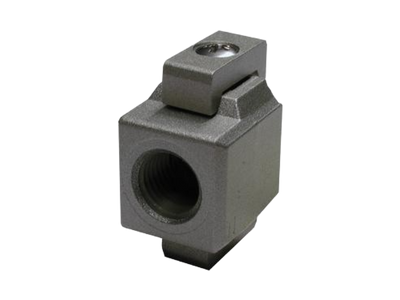

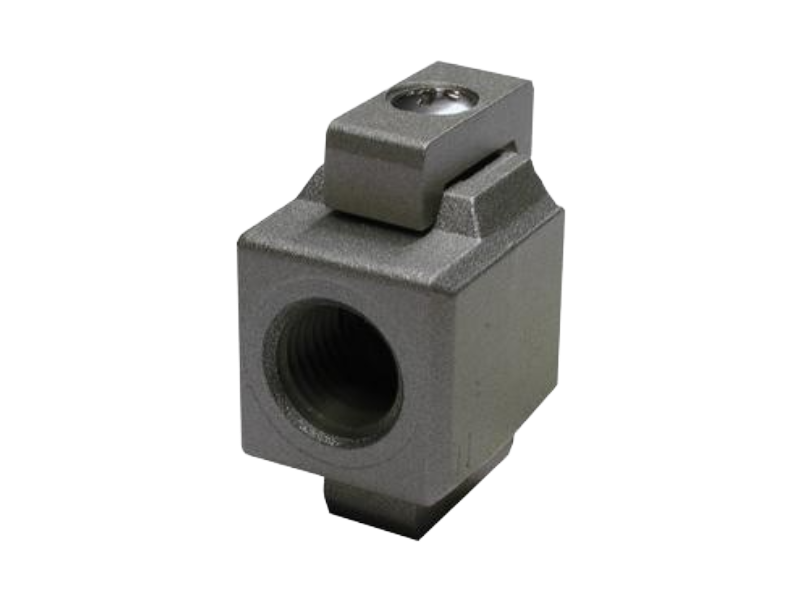

SMC EVP7425YO04FAQ (EVP742-5YO-04FA-Q) - 3 Port Pilot Operated Poppet Solenoid Valve, Body Ported, G1/2 Port, 24 VDC Coil
SMC EVP7425YO04FAQ 3 Port Pilot Operated Poppet Solenoid Valve, Body Ported — VP700 body with G1/2 port and Cv 4.0 flow. 3 port pilot operated poppet valve, normally closed (N.C./N.O. changeable), G1/2 (PF) port, effective area 62 mm2 (3337 Nl/min), Cv 4.0, 24 VDC coil, DIN terminal (DIN 43650C) without connector, internal pilot, operating pressure 0.2 to 0.8 MPa.
MPN: EVP742-5YO-04FA-Q · SKU: EVP7425YO04FAQ
EVP742-5YO-04FA-Q Applications
The SMC EVP7425YO04FAQ is used where the largest flow in the VP family is needed: main line supply and residual pressure release on G1/2 lines, high-volume blow-off, vacuum control, and single acting cylinder drive in packaging, automotive and heavy factory automation. It is suited for air knife and blow nozzle banks, dump valves on air preparation lines, and selector or divider duty between two supply lines. The VP700 poppet gives Cv 4.0 at only 1.8 W coil power, and actuation is changeable between normally closed and normally open without altering the piping.
EVP742-5YO-04FA-Q Specifications
| Brand | SMC | Manufacturer Part No. | EVP742-5YO-04FA-Q |
| Product Type | 3 Port Pilot Operated Poppet Solenoid Valve, Body Ported | Series | VP700 |
| Ordering Source Area Code | E (Europe) | Body Style | Body ported (VP742) |
| Actuation | Normally closed (changeable to normally open) | Seal Type | Rubber seal, poppet construction |
| Port Size | 1/2 (04), G (PF) thread | Effective Area | 62 mm2 (3337 Nl/min) |
| Cv Factor | 4.0 | Fluid | Air |
| Pilot Style | Internal pilot | Operating Pressure Range | 0.2 to 0.8 MPa (internal pilot) |
| Response Time | 30 ms or less (at 0.5 MPa) | Max. Operating Frequency | 5 Hz |
| Coil Rated Voltage | 24 VDC | Allowable Voltage | -15 to +10% of rated voltage |
| Power Consumption (DC) | 1.8 W (2 W with light) | Electrical Entry | DIN terminal DIN 43650C (Y type), supplied without connector (YO) |
| Manual Override | Non-locking push style | Ambient and Fluid Temperature | Max. 50 C |
| Lubrication | Not required (turbine oil Class 1 ISO VG32 if lubricated) | Impact/Vibration Resistance | 300/50 m/s2 |
| Weight | 0.64 kg (body ported) | Mounting | Free |
Equivalents & Cross-Reference
Cross-references are functional equivalents provided for guidance only. Verify port size, flow, and pressure rating before substituting.
