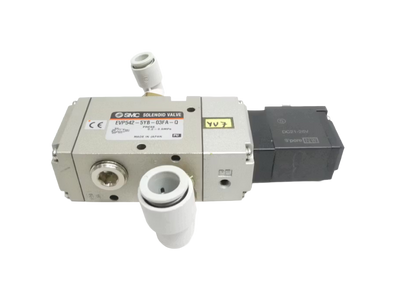

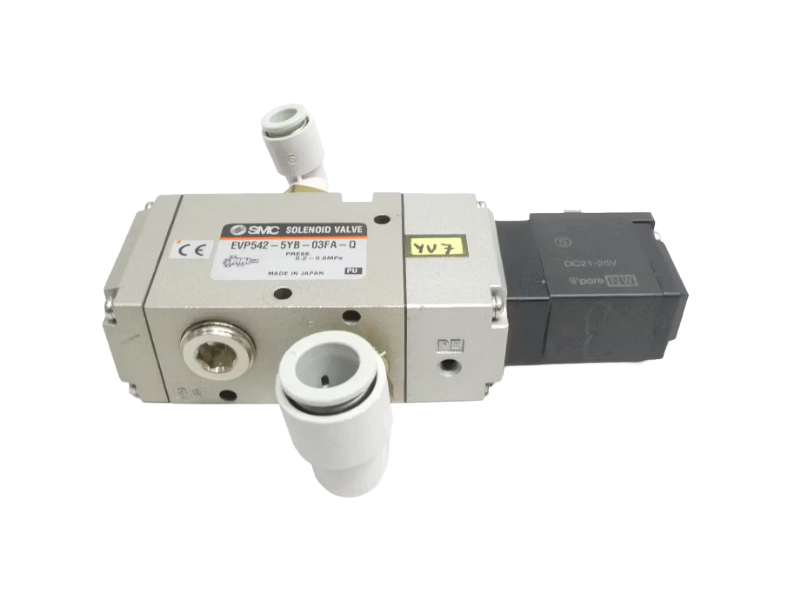

SMC EVP5425YO03FAQ (EVP542-5YO-03FA-Q) - 3 Port Pilot Operated Poppet Solenoid Valve, Body Ported, G3/8 Port, 24 VDC Coil
SMC EVP5425YO03FAQ 3 Port Pilot Operated Poppet Solenoid Valve, Body Ported — VP500 body with G3/8 port and Cv 2.3 flow. 3 port pilot operated poppet valve, normally closed (N.C./N.O. changeable), G3/8 (PF) port, effective area 36 mm2 (1963 Nl/min), Cv 2.3, 24 VDC coil, DIN terminal (DIN 43650C) without connector, internal pilot, operating pressure 0.2 to 0.8 MPa.
MPN: EVP542-5YO-03FA-Q · SKU: EVP5425YO03FAQ
EVP542-5YO-03FA-Q Applications
The SMC EVP5425YO03FAQ is used as a large-flow 3 port valve for main line supply and pressure release duties, blow-off circuits, vacuum control, and single acting cylinder control in packaging, automotive and general factory automation. It is suited for air blow guns and nozzles, selector and divider service between two lines, and residual pressure release at machine start-up and shutdown. The VP500 poppet construction gives Cv 2.3 through a G3/8 port with only 1.8 W coil power, and actuation can be changed between normally closed and normally open without re-piping.
EVP542-5YO-03FA-Q Specifications
| Brand | SMC | Manufacturer Part No. | EVP542-5YO-03FA-Q |
| Product Type | 3 Port Pilot Operated Poppet Solenoid Valve, Body Ported | Series | VP500 |
| Ordering Source Area Code | E (Europe) | Body Style | Body ported (VP542) |
| Actuation | Normally closed (changeable to normally open) | Seal Type | Rubber seal, poppet construction |
| Port Size | 3/8 (03), G (PF) thread | Effective Area | 36 mm2 (1963 Nl/min) |
| Cv Factor | 2.3 | Fluid | Air |
| Pilot Style | Internal pilot | Operating Pressure Range | 0.2 to 0.8 MPa (internal pilot) |
| Response Time | 30 ms or less (at 0.5 MPa) | Max. Operating Frequency | 5 Hz |
| Coil Rated Voltage | 24 VDC | Allowable Voltage | -15 to +10% of rated voltage |
| Power Consumption (DC) | 1.8 W (2 W with light) | Electrical Entry | DIN terminal DIN 43650C (Y type), supplied without connector (YO) |
| Manual Override | Non-locking push style | Ambient and Fluid Temperature | Max. 50 C |
| Lubrication | Not required (turbine oil Class 1 ISO VG32 if lubricated) | Impact/Vibration Resistance | 300/50 m/s2 |
| Weight | 0.33 kg (body ported) | Mounting | Free |
Equivalents & Cross-Reference
Cross-references are functional equivalents provided for guidance only. Verify port size, flow, and pressure rating before substituting.
EVP542-5YO-03FA-Q Datasheet & Manual
