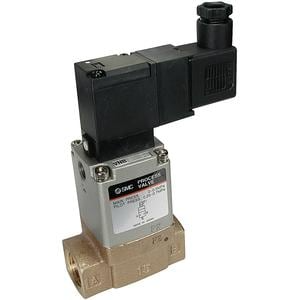

SMC EVNB601ALF40A (EVNB601AL-F40A) - 2 Port Process Valve for Flow Control, Air Operated, G1-1/2 Port, Aluminium Body
SMC EVNB601ALF40A 2 Port Process Valve for Flow Control, Air Operated — size 6 body with o40 mm orifice, aluminium body and NBR seals, G1-1/2 port. 2 port air operated process valve, normally closed 0.5 MPa type, size 6 with o40 mm orifice, G1-1/2 (PF) port, aluminium body, NBR seals, effective area 500 mm2 (Cv 28), pilot pressure 0.25 to 0.7 MPa.
MPN: EVNB601AL-F40A · SKU: EVNB601ALF40A
EVNB601AL-F40A Applications
The SMC EVNB601ALF40A is used on large-bore water, oil, air and vacuum lines in process plant, cooling towers, coolant circuits, tank filling and washdown systems. It is suited for high-volume hot water circuits up to 99 C, bulk coolant on-off control, and vacuum line isolation where a o40 mm orifice and Cv 28 are needed. The aluminium body keeps the assembly light at 1-1/2 inch line size, and air-operated actuation means no coil heat and free choice of remote pilot solenoid valve and voltage.
EVNB601AL-F40A Specifications
| Brand | SMC | Manufacturer Part No. | EVNB601AL-F40A |
| Product Type | 2 Port Process Valve for Flow Control, Air Operated | Series | VNB |
| Ordering Source Area Code | E (Europe) | Valve Size | Size 6 |
| Construction | Air operated | Valve Type | N.C. (normally closed), 0.5 MPa type |
| Port Size | 1-1/2 (40A), G (PF) thread | Pilot Ports | Rc 1/4 (12(P1), 10(P2)) |
| Orifice Diameter | o40 mm | Effective Area | 500 mm2 (conversion Cv 28) |
| Kv Factor (water) | 24.2 | Applicable Fluids | Water, oil, air, vacuum, etc. (check SMC applicable fluid list) |
| Operating Pressure Range | Low vacuum to 0.5 MPa | Proof Pressure | 1.5 MPa |
| Pilot Pressure Range | 0.25 to 0.7 MPa | Fluid Temperature | -5 to 99 C (air operated type) |
| Ambient Temperature | -5 to 60 C (air operated type) | Body Material | Aluminium (body option L) |
| Seal Material | NBR (seal A) | Lubrication | Not required (turbine oil Class 1 ISO VG32 if lubricated) |
| Mounting Orientation | Unrestricted |
