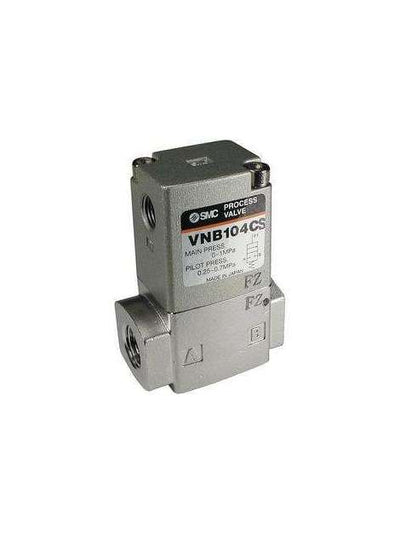

SMC EVNB104CSF10A (EVNB104CS-F10A) - 2 Port Process Valve for Flow Control, Air Operated, G3/8 Port, Stainless Steel Body
SMC EVNB104CSF10A 2 Port Process Valve for Flow Control, Air Operated — size 1 body with o7 mm orifice, stainless steel body and EPDM seals, G3/8 port. 2 port air operated process valve, normally closed, size 1 with o7 mm orifice, G3/8 (PF) port, stainless steel body, EPR/EPDM seals, operating pressure low vacuum to 1.0 MPa, pilot pressure 0.25 to 0.7 MPa.
MPN: EVNB104CS-F10A · SKU: EVNB104CSF10A
EVNB104CS-F10A Applications
The SMC EVNB104CSF10A is used in water, oil, air and vacuum flow-control duties across process plant, coolant and temperature-control circuits, washing and cleaning lines, and food and chemical handling machinery. It is suited for hot water circuits up to 99 C, coolant on-off control at machine tools, and vacuum line isolation. The stainless steel body with EPR/EPDM seals resists corrosion and hot water, while air-operated actuation keeps the valve free of coil heat and lets it be driven from any remote pilot solenoid valve.
EVNB104CS-F10A Specifications
| Brand | SMC | Manufacturer Part No. | EVNB104CS-F10A |
| Product Type | 2 Port Process Valve for Flow Control, Air Operated | Series | VNB |
| Ordering Source Area Code | E (Europe) | Valve Size | Size 1 |
| Construction | Air operated | Valve Type | N.C. (normally closed), 1 MPa type |
| Port Size | 3/8 (10A), G (PF) thread | Orifice Diameter | o7 mm |
| Flow Rate Characteristics | C = 4.7 dm3/(s.bar), b = 0.18, Kv = 1.1, Av = 31 x 10-6 m2 | Applicable Fluids | Water, oil, air, vacuum, etc. (check SMC applicable fluid list) |
| Operating Pressure Range | Low vacuum to 1.0 MPa | Proof Pressure | 1.5 MPa |
| Pilot Pressure Range | 0.25 to 0.7 MPa | Fluid Temperature | -5 to 99 C (air operated type) |
| Ambient Temperature | -5 to 60 C (air operated type) | Body Material | Stainless steel (body option S) |
| Seal Material | EPR / EPDM (seal C) | Lubrication | Not required; not permitted with EPR/EPDM seals |
| Max. Operating Frequency | 30 cycles/min | Vibration / Impact Resistance | 30 m/s2 / 150 m/s2 |
| Mounting Orientation | Unrestricted |
