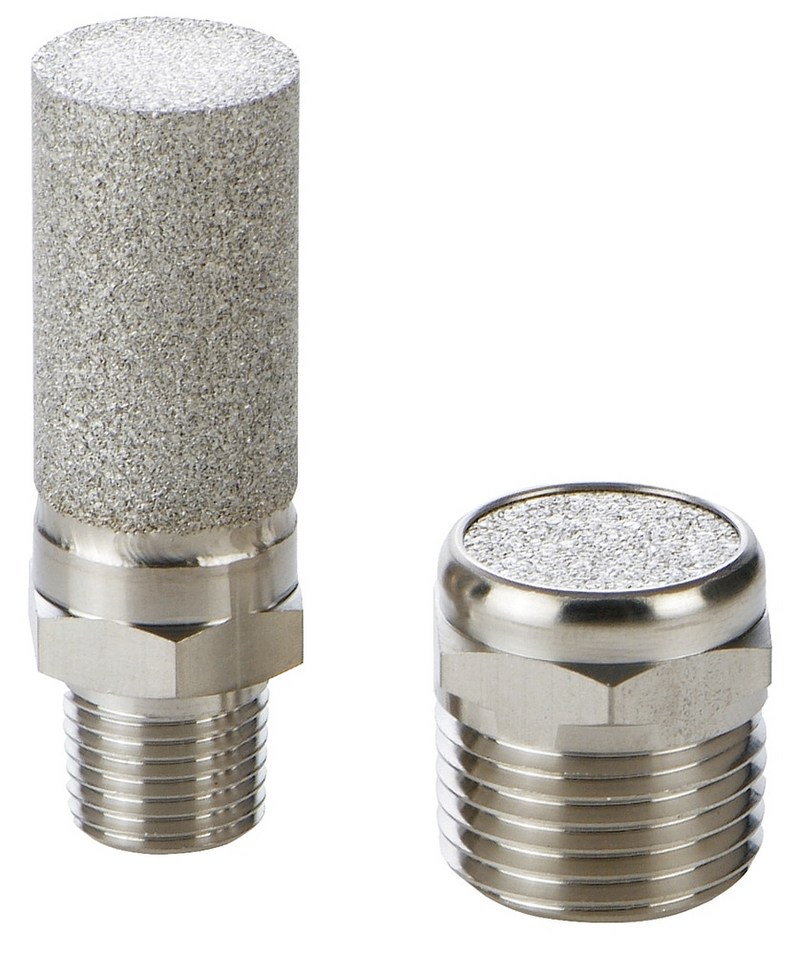

SMC EBKXJ2001040 (EBKX-J2001-040) - Sintered Metal Element, R1/4 Port, 40 Micron Element
SMC EBKXJ2001040 Sintered Metal Element — the J2001 body at R1/4 with 40 micron filtration. Bronze (BC) sintered metal element with fitting, R1/4 port, 40 micron nominal filtration accuracy, dimensions A 47.3 mm, B 17 mm, C 21 mm, plug type silencer, cleanable and reusable.
MPN: EBKX-J2001-040 · SKU: EBKXJ2001040
EBKX-J2001-040 Applications
The SMC EBKXJ2001040 is a bronze sintered metal element with an integral R1/4 fitting, used as a plug-type silencer and breather on pneumatic valves, manifolds, cylinders and vacuum equipment across factory automation, packaging and machine tool plant. It is suited for muffling exhaust noise at valve exhaust ports, keeping airborne dust out of vented cavities and gearboxes, and diffusing flow where a screw-in element is needed. The J2001 body gives a 40 micron element on an R1/4 thread, and because the sintered bronze can be washed and refitted it is reusable rather than a throwaway consumable.
EBKX-J2001-040 Specifications
| Brand | SMC | Manufacturer Part No. | EBKX-J2001-040 |
| Product Type | Sintered Metal Element | Series | EBKX Series Sintered Metal Element |
| Element Type | Bronze (BC), element with fitting (standard product) | Port Size | R1/4 (option code J2001) |
| Nominal Filtration Accuracy | 40 micron (option code 040) | Dimension A | 47.3 mm |
| Dimension B | 17 mm | Dimension C | 21 mm |
| Application Type | Plug type silencer (EBKX/EBKY) | Reusability | Can be used repeatedly by cleaning |
| Fabrication | Caulking, brazing, soldering, welding and simultaneous sintering are possible |
