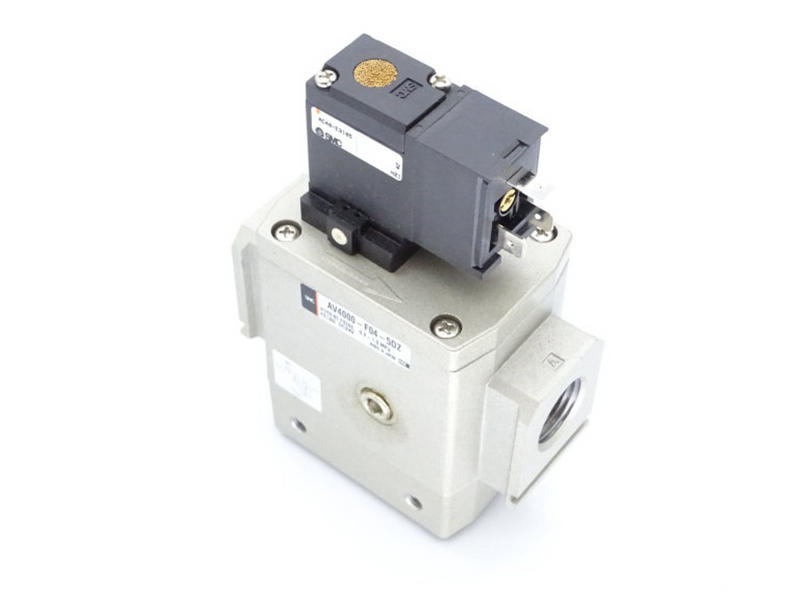

SMC EAV4000F04G5YZQ (EAV4000-F04G-5YZ-Q) - Soft Start-up Valve, G1/2 Port, With Pressure Gauge

Name: SMC EAV4000F04G5YZQ (EAV4000-F04G-5YZ-Q) - Soft Start-up Valve, G1/2 Port, With Pressure Gauge
Brand: SMC
SKU: EAV4000F04G5YZQ
Price: 3333.00 AED
Availability: BackOrder

Brand: SMC|Part No: EAV4000F04G5YZQ

AED 3,333.00

Quantity

Add to Quote

SMC EAV4000F04G5YZQ Soft Start-up Valve — a round pressure gauge, a DIN terminal with connector fitted and a light/surge voltage suppressor. Body size 40, G1/2 port, with pressure gauge, 24 VDC coil, Type Y DIN terminal with connector, with light/surge voltage suppressor, push-turn locking (flush) manual override, flow left to right, CE-compliant.

MPN: EAV4000-F04G-5YZ-Q · SKU: EAV4000F04G5YZQ

EAV4000-F04G-5YZ-Q Applications

The SMC EAV4000F04G5YZQ is used in compressed air systems on production machinery, packaging lines, automotive assembly plants and general factory automation, mounted at the head of a modular F.R.L. air preparation set. It is suited for gradual pressurisation of cylinders and manifolds at machine start-up, rapid exhaust of residual air on shut-off, and safe lock-out during maintenance. Unlike the plain EAV4000F045YOQ, this variant carries a round pressure gauge for at-a-glance verification of downstream pressure, ships with the DIN connector fitted, and adds a light/surge voltage suppressor that shows coil state and protects the controller.

EAV4000-F04G-5YZ-Q Specifications

Brand	SMC	Manufacturer Part No.	EAV4000-F04G-5YZ-Q
Product Type	Soft Start-up Valve	Series	AV2000/3000/4000/5000 Soft Start-Up Valve
Body Size	40 (1/2)	Thread Type	G (symbol F)
Port Size	G1/2	Option	G - With pressure gauge
Coil Rated Voltage	24 VDC	Electrical Entry	Type Y, DIN terminal (with connector)
Light/Surge Voltage Suppressor	With light/surge voltage suppressor	Manual Override	Push-turn locking type (flush)
Flow Direction	Left to right	CE-compliant	Yes (suffix Q)
Function	Supplies air at low speed on start-up, exhausts at high speed when supply is blocked
