ASCO E290B010 - Angle-Body Pressure-Operated Piston Valve, G1 2/2 N/C, Bronze

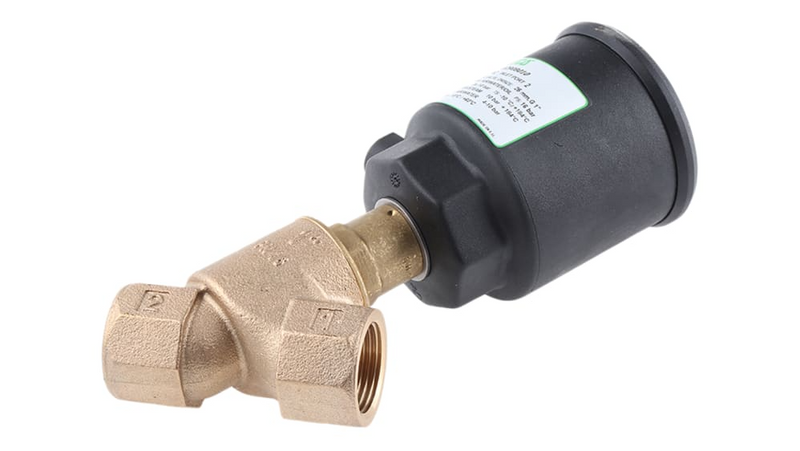

ASCO E290B010 Angle-Body Pressure-Operated Piston Valve — bronze body, G1 port, 25 mm orifice. Series 290 pressure-operated angle-body piston valve, 2/2 normally closed, bronze body, G1 (ISO 228/1), 25 mm orifice, Cv 19.08, entry under disc, 63 mm operator, 4 bar pilot, 0-10 bar, air/water/light oil/steam.

MPN / SKU: E290B010

E290B010 Applications

The ASCO E290B010 is a Series 290 pressure-operated angle-body piston valve in bronze, configured 2/2 normally closed with entry under the disc for anti-water-hammer closure. With a G1 (ISO 228/1) connection, 25 mm orifice, and Cv 19.08, it is air-piloted at 4 bar via a 63 mm operator and handles air, inert gas, water, light oil, and steam from 0-10 bar up to 184 C. The robust bronze construction suits steam service, hot-water systems, industrial process lines, and high-flow fluid control demanding durable, high-capacity shut-off.

E290B010 Specifications
