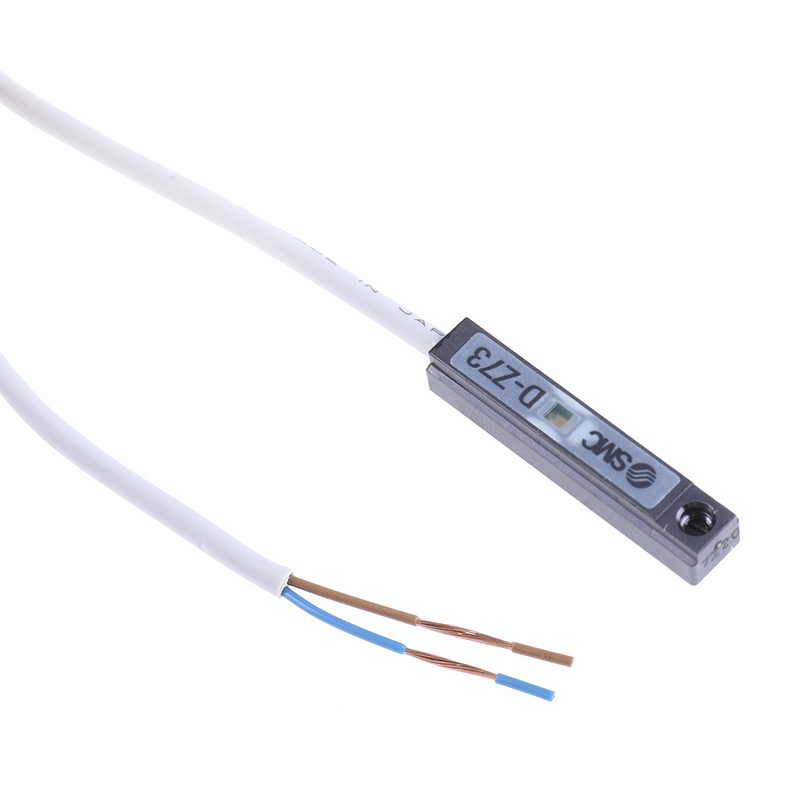

SMC DZ73 (D-Z73) - Reed Auto Switch, 24 VDC / 100 VAC 2-Wire Type, 0.5 m Lead Wire
SMC DZ73 Reed Auto Switch — reed contact rated for both 24 VDC and 100 VAC loads. Reed auto switch with indicator light, grommet, 2-wire, in-line lead wire entry, 0.5 m lead wire, applied voltage 24 VDC / 100 VAC, general purpose direct mounting style, standard type.
MPN: D-Z73 · SKU: DZ73
D-Z73 Applications
The SMC DZ73 is used for magnetic piston position sensing on pneumatic cylinders across packaging, conveying, general assembly and machine tool automation. It is suited for end-of-stroke confirmation, simple interlock signalling, and driving relays or PLC inputs. Because its reed contact is rated for 100 VAC as well as 24 VDC, it is the practical choice on legacy or mixed-voltage panels where an AC relay or AC-input card must be switched directly, without adding an interposing DC supply or signal converter.
D-Z73 Specifications
| Brand | SMC | Manufacturer Part No. | D-Z73 |
| Product Type | Reed Auto Switch | Series | D-Z |
| Switch Type | Reed | Indicator Light | With indicator light |
| Wiring | 2-wire | Electrical Entry | Grommet, in-line |
| Lead Wire Length | 0.5 m | Applied Voltage | 24 VDC / 100 VAC |
| Mounting Style | Direct mounting (general purpose) | Type | Standard |
