SMC DM9PSAPC (D-M9PSAPC) - Solid State Auto Switch, 3-Wire, PNP Output

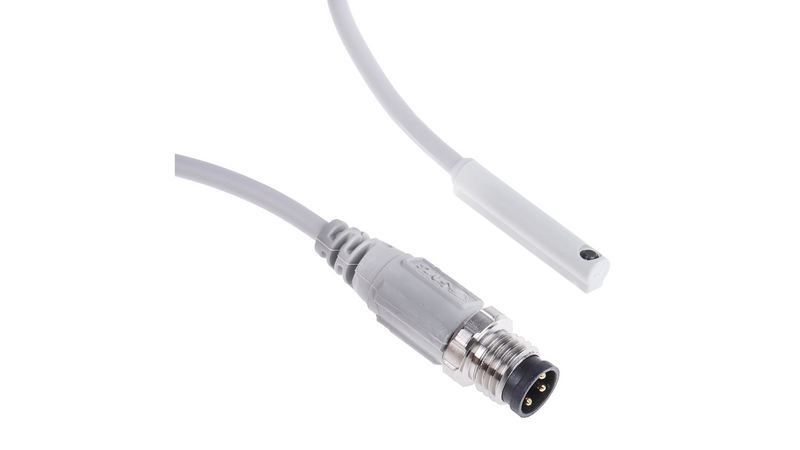

SMC DM9PSAPC Solid State Auto Switch — Solid state, 3-wire, PNP output, M8 3-pin pre-wired connector. SMC D-M9PSAPC solid state auto switch, general purpose / direct mounting style, supplied with a 500 mm lead to an M8 3-pin pre-wired connector (SAPC option). 3-wire, PNP output, with red LED indicator light. Applicable load IC circuit / relay / PLC. Power supply voltage 5/12/24 VDC (4.5 to 28 VDC). Current consumption 10 mA or less. Load voltage 28 VDC or less. Load current 40 mA or less. Internal voltage drop 0.8 V or less at 10 mA (2 V or less at 40 mA). Current leakage 100 uA or less at 24 VDC. Operating time 1 ms or less. Impact proof 1000 m/s2. Insulation resistance 50 MOhm or more at 500 VDC. Withstand voltage 1000 VAC 1 min. Ambient temperature -10 to 60 C. Enclosure IP67 (IEC 60529 / JIS C 0920).

MPN: D-M9PSAPC · SKU: DM9PSAPC

D-M9PSAPC Applications

The D-M9PSAPC is the pre-wired connector variant of the D-M9P, a 3-wire PNP solid state auto switch terminating in an M8 3-pin connector (SAPC) for fast, tool-free connection to distribution boxes and cable assemblies. It detects magnet position in pneumatic cylinders for IC, relay and PLC inputs at 4.5-28 VDC with low internal voltage drop. The connector speeds installation and switch replacement, and solid state construction gives long, shock-tolerant (1000 m/s2) service life.
