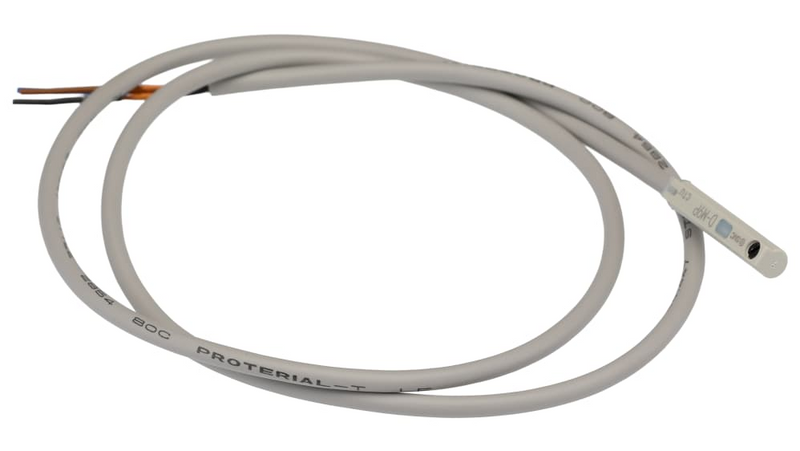

SMC DM9P (D-M9P) - Solid State Auto Switch, 3-Wire, PNP Output

SMC DM9P Solid State Auto Switch — Solid state, 3-wire, PNP output, direct mounting. SMC D-M9P solid state auto switch, general purpose / direct mounting style. 3-wire, PNP output, with red LED indicator light, in-line grommet entry. Applicable load IC circuit / relay / PLC. Power supply voltage 5/12/24 VDC (4.5 to 28 VDC). Current consumption 10 mA or less. Load voltage 28 VDC or less. Load current 40 mA or less. Internal voltage drop 0.8 V or less at 10 mA (2 V or less at 40 mA). Current leakage 100 uA or less at 24 VDC. Operating time 1 ms or less. Vinyl sheath cable 2.7 x 3.2 oval, 0.15 mm2, 3-wire. Impact proof 1000 m/s2. Insulation resistance 50 MOhm or more at 500 VDC. Withstand voltage 1000 VAC 1 min. Ambient temperature -10 to 60 C. Enclosure IP67 (IEC 60529 / JIS C 0920). Lead wire 0.5 m standard.

MPN: D-M9P · SKU: DM9P

D-M9P Applications

The D-M9P is a 3-wire PNP solid state auto switch that detects magnet position in pneumatic cylinders and grippers for IC circuit, relay and PLC inputs. PNP (sourcing) output suits positive-common control systems common in Europe. The dedicated power line keeps internal voltage drop low for clean logic signalling, and solid state construction with 1000 m/s2 impact resistance provides long, contact-free service life as a general-purpose end-of-stroke sensor.
