SMC DM9BSAPC (D-M9BSAPC) - Solid State Auto Switch, 2-Wire Output, M8 3-Pin Connector

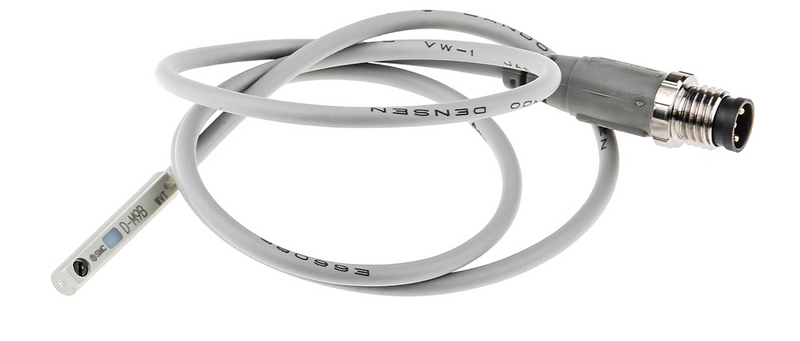

SMC DM9BSAPC Solid State Auto Switch — 2-wire output with a factory-fitted M8 3-pin pre-wired connector on a 0.5 m cable. General purpose solid state auto switch, direct mounting style, 2-wire, with pre-wired M8 3-pin connector, 0.5 m cable, DC 24 V (10 to 28 VDC), with indicator light, IP67.
MPN: D-M9BSAPC · SKU: DM9BSAPC
D-M9BSAPC Applications
The SMC D-M9BSAPC is used for cylinder position sensing on machines wired with plug-in M8 connectors, such as modular assembly cells, packaging equipment and robotic end-of-arm tooling. It is suited for stroke-end confirmation, PLC input signalling, and any station built and commissioned as a pre-wired sub-assembly. The factory-fitted M8 3-pin connector removes on-site harnessing and cable cutting entirely, and because it is a 2-wire type it drops into the same series-loop wiring used by reed switches while keeping the IP67 rating of the standard D-M9B.
D-M9BSAPC Specifications
| Brand | SMC | Manufacturer Part No. | D-M9BSAPC |
| Product Type | Solid State Auto Switch, General Purpose | Series | D-M9 |
| Mounting Style | Direct mounting | Wiring | 2-wire |
| Output Type | DC 2-wire (B) | Electrical Entry | In-line (axial) |
| Connector | M8 3-pin pre-wired connector (S = 0.5 m, A = M8-3 pin, PC = pre-wired connector) | Cable Length | 0.5 m |
| Apply Voltage | DC 24 V (10 to 28 VDC) | Indicator Light | Yes, 1 colour |
| Connector Standard | IEC61076-2-104 | Pin Arrangement (2-wire) | Pin 1 = OUT(+), Pin 4 = OUT(-) |
| Enclosure | IP67 (IEC60529) with screw tightened | Impact Resistance | 300 m/s2 |
| Insulation Resistance | 100 Mohm or more at 500 VDC | Withstand Voltage | 1500 VAC for 1 minute (between contacts) |
| Leak Current | 1 mA or less | Connector Weight | Approx. 4 g |
