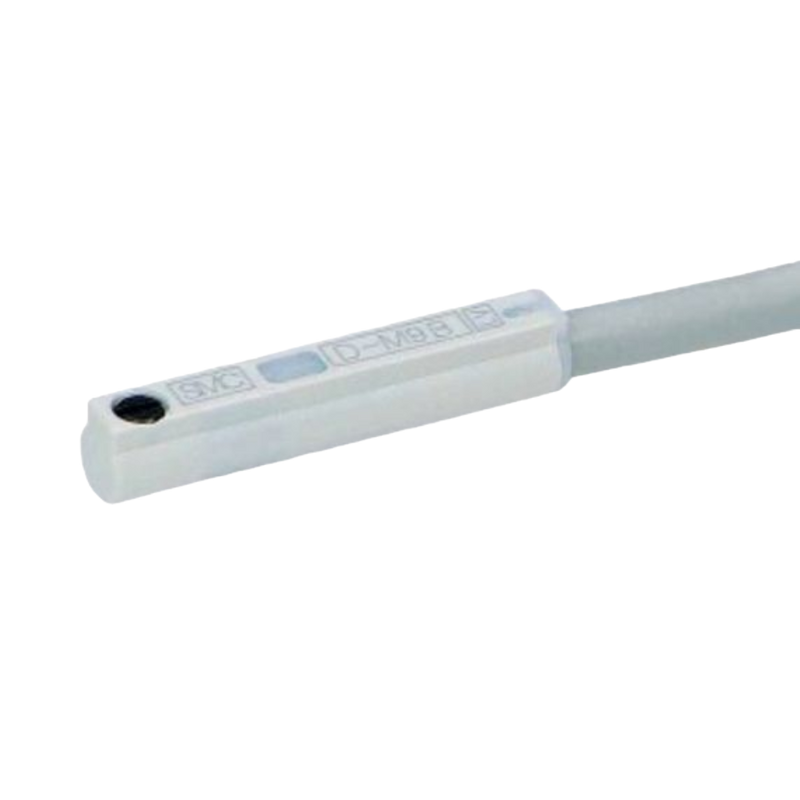

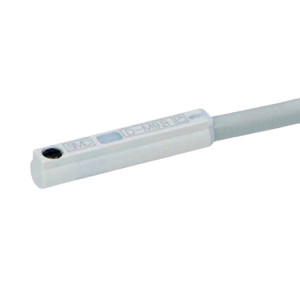

SMC DM9BL (D-M9BL) - Solid State Auto Switch, 2-Wire, With Indicator Light

SMC DM9BL Solid State Auto Switch — Solid state, 2-wire, 3 m lead wire, direct mounting. SMC D-M9BL solid state auto switch, general purpose / direct mounting style. 2-wire (no output polarity) with red LED indicator light; L suffix = 3000 mm (3 m) lead wire, in-line grommet entry. Applicable load 24 VDC relay/PLC. Load voltage 24 VDC (10 to 28 VDC). Load current 2.5 to 40 mA. Internal voltage drop 4 V or less. Current leakage 0.8 mA or less. Operating time 1 ms or less. Vinyl sheath cable 2.7 x 3.2 oval, 0.15 mm2. Impact proof 1000 m/s2. Insulation resistance 50 MOhm or more at 500 VDC. Withstand voltage 1000 VAC 1 min. Ambient temperature -10 to 60 C. Enclosure IP67 (IEC 60529 / JIS C 0920).

MPN: D-M9BL · SKU: DM9BL

D-M9BL Applications

The D-M9BL is a 2-wire solid state auto switch with a 3 m lead wire, detecting magnet position in pneumatic cylinders and grippers for 24 VDC relay and PLC inputs. Being solid state, it has no mechanical contacts to wear and withstands 1000 m/s2 impact, giving longer life and higher shock tolerance than reed types. The 2-wire design simplifies wiring, and the extended 3 m lead suits actuators mounted away from the control cabinet.
