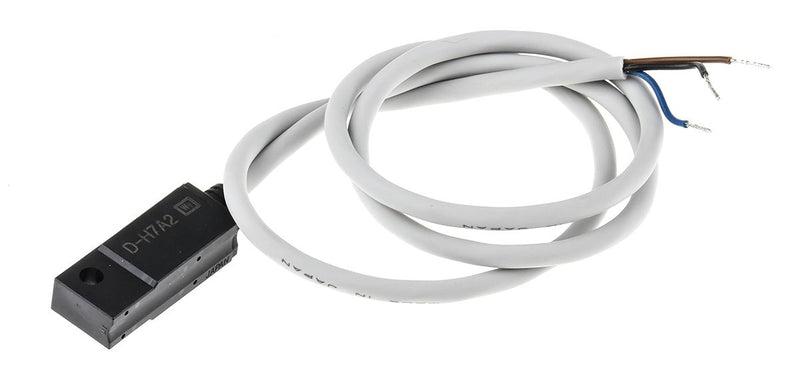

SMC DH7A2 (D-H7A2) - Solid State Auto Switch, 3-Wire PNP Output, Band Mounting

SMC DH7A2 Solid State Auto Switch — 3-wire PNP output, band mounting style with a 0.5 m grommet lead wire. General purpose solid state auto switch, band mounting style, 3-wire PNP output, grommet, 0.5 m lead wire, DC 5/12/24 V (4.5 to 28 VDC), 40 mA max. load current, IP67, red LED indicator.

MPN: D-H7A2 · SKU: DH7A2

D-H7A2 Applications

The SMC D-H7A2 is used to sense piston position on pneumatic cylinders in assembly machines, packaging lines, machine tools and general factory automation. It is suited for end-of-stroke confirmation, interlock and sequencing signals into a PLC source input, and driving 24 VDC relays or IC circuits directly. Its band mounting style lets it clamp onto round-body and tie-rod cylinders that have no sensor slot, while the PNP source output, red LED indicator and IP67 grommet lead make it a straightforward choice for machine builders standardising on 3-wire positive-switching sensors.

D-H7A2 Specifications
