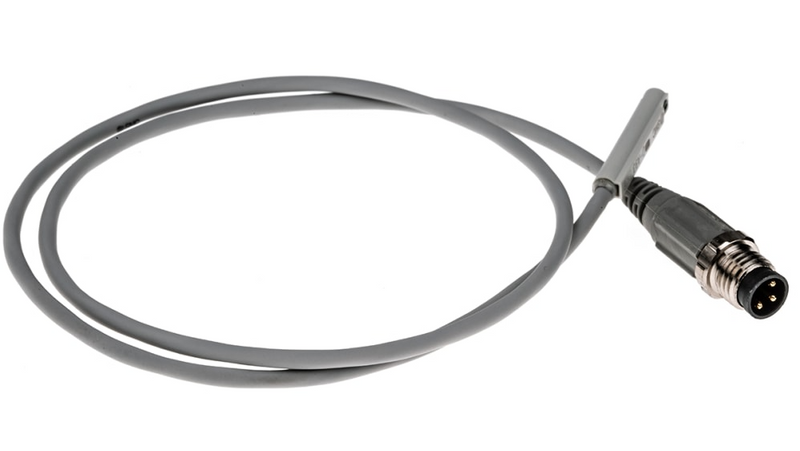

SMC DA93SAPC (D-A93SAPC) - Reed Auto Switch, 2-Wire, With Pre-Wired Connector

SMC DA93SAPC Reed Auto Switch — Reed, 2-wire, with indicator light, M8 3-pin pre-wired connector. SMC D-A93SAPC reed auto switch, general purpose / direct mounting style, supplied with a 500 mm lead to an M8 3-pin pre-wired connector (SAPC option). 2-wire with red LED indicator light. Applicable load: PLC/relay. Load voltage 24 VDC (also AC100V), load current 5 to 40 mA. Internal voltage drop 2.4 V or less (up to 20 mA) / 3 V or less (up to 40 mA). Operating time 1.2 ms. Impact proof 300 m/s2. Insulation resistance 50 MOhm or more at 500 VDC. Withstand voltage 1500 VAC for 1 minute. Ambient temperature -10 to +60 C. Enclosure IP67 (IEC 60529 / JIS C 0920).

MPN: D-A93SAPC · SKU: DA93SAPC

D-A93SAPC Applications

The D-A93SAPC is the pre-wired connector variant of the D-A93 reed auto switch, terminating in an M8 3-pin connector for quick, tool-free connection to distribution boxes and cable assemblies. It detects magnet position in pneumatic cylinders for relay and PLC inputs and shares the 2-wire, 24 VDC/100 VAC, 5-40 mA electrical rating of the standard D-A93. The connector option speeds installation and improves serviceability in machines where auto switches are replaced or reconfigured frequently.

D-A93SAPC Specifications
