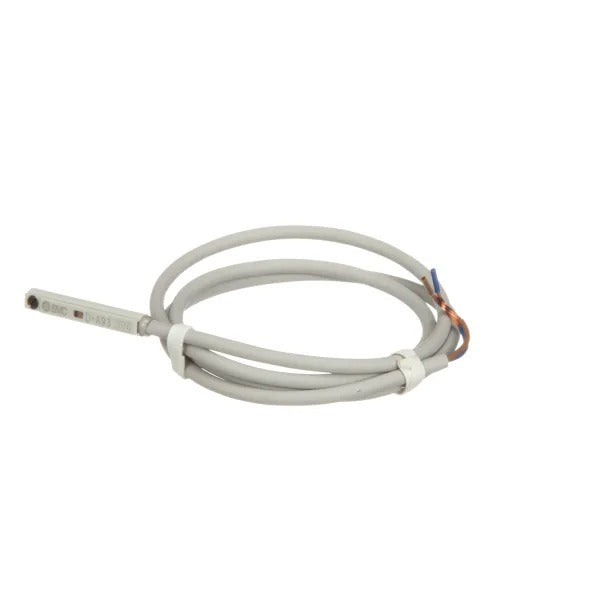

SMC DA93 (D-A93) - Reed Auto Switch, 2-Wire, With Indicator Light

SMC DA93 Reed Auto Switch — Reed, 2-wire, with indicator light, direct mounting. SMC D-A93 reed auto switch, general purpose / direct mounting style. 2-wire, grommet, in-line lead wire orientation with red LED indicator light. Applicable load: PLC/relay. Load voltage 24 VDC (also AC100V), load current 5 to 40 mA. Internal voltage drop 2.4 V or less (up to 20 mA) / 3 V or less (up to 40 mA). Operating time 1.2 ms. Impact proof 300 m/s2. Insulation resistance 50 MOhm or more at 500 VDC. Withstand voltage 1500 VAC for 1 minute. Ambient temperature -10 to +60 C. Enclosure IP67 (IEC 60529 / JIS C 0920). Lead wire 0.5 m standard.

MPN: D-A93 · SKU: DA93

D-A93 Applications

The D-A93 detects piston position in pneumatic cylinders via a magnet on the piston, mounting directly into the switch groove of compatible SMC actuators. As a 2-wire reed switch with a red LED, it suits relay and PLC inputs where a simple mechanical contact and 24 VDC/100 VAC compatibility are needed. Its wide load-current range (5 to 40 mA) and IP67 enclosure make it a robust, economical end-of-stroke sensor for general automation, air cylinders, and grippers.

D-A93 Specifications
