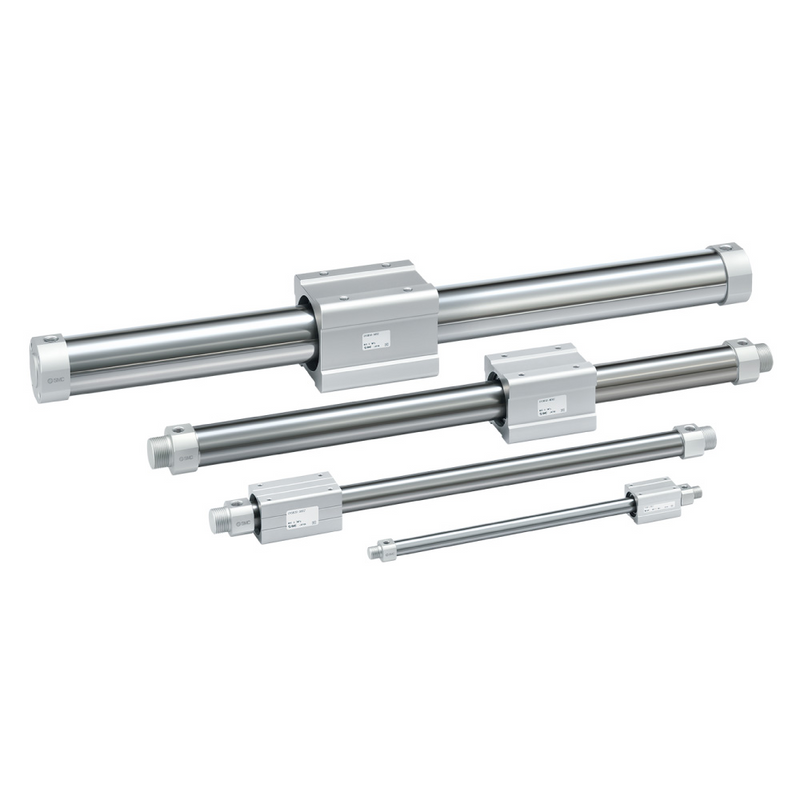

SMC CY3R63TF500N (CY3R63TF-500N) - Magnetically Coupled Rodless Cylinder, 63mm Bore, 500mm Stroke

SMC CY3R63TF500N Magnetically Coupled Rodless Cylinder — direct mount type, 63 mm bore with G1/4 ports, supplied without switch rail. Direct mount type, 63 mm bore, 500 mm stroke, G1/4 ports (TF), without switch rail (N), magnet holding force 2256 N, 0.7 MPa max. operating pressure.

MPN: CY3R63TF-500N · SKU: CY3R63TF500N

CY3R63TF-500N Applications

The SMC CY3R63TF500N is used in heavy transfer gantries, palletising and packaging machinery, machine-tool loaders and long-travel handling axes that need high thrust without a protruding piston rod. It is suited for moving heavy workpieces horizontally, driving carriages along long guide axes, and vertical lifting with an external stopper. Unlike the basic CY3B, the direct mount type carries the load on the body itself, and this build is specified with native G1/4 (BSPP) ports and no switch rail, so it drops straight into BSPP-threaded installations where cylinder position sensing is not required.

CY3R63TF-500N Specifications
