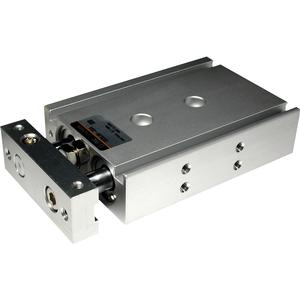

SMC CXSM630 (CXSM6-30) - Dual Rod Guided Cylinder, 6mm Bore, 30mm Stroke

Name: SMC CXSM630 (CXSM6-30) - Dual Rod Guided Cylinder, 6mm Bore, 30mm Stroke
Brand: SMC
SKU: CXSM630
Price: 341.00 AED
Availability: BackOrder

Brand: SMC|Part No: CXSM630

AED 341.00

Quantity

Add to Quote

SMC CXSM630 Dual Rod Guided Cylinder — 6 mm bore slide-bearing version with 30 mm stroke. Double acting, 6 mm bore, 30 mm stroke, slide bearing (CXSM), M5 x 0.8 port, 0.7 MPa max. operating pressure, non-rotating accuracy +/-0.1 deg.

MPN: CXSM6-30 · SKU: CXSM630

CXSM6-30 Applications

The SMC CXSM630 is used in pick-and-place cells, small-parts assembly machines, and electronics and semiconductor handling equipment where compact non-rotating linear motion is required. It is suited for lifting and transferring light workpieces, stopper and pusher duties on conveyors, and mounting tooling directly on the guided plate. Its dual-rod construction with a slide bearing gives a non-rotating accuracy of +/-0.1 degrees and allows workpieces to be mounted on three surfaces, so the actuator can be installed from three directions without an additional external guide.

CXSM6-30 Specifications

Brand	SMC	Manufacturer Part No.	CXSM6-30
Product Type	Dual Rod Cylinder, Basic Type	Series	CXS (CXSM = slide bearing)
Bore Size	6 mm	Stroke	30 mm
Action	Double acting	Bearing Type	Slide bearing
Fluid	Air (non-lube)	Proof Pressure	1.05 MPa
Max. Operating Pressure	0.7 MPa	Min. Operating Pressure	0.15 MPa
Piston Speed	30 to 300 mm/s	Cushion	Rubber bumper
Port Size	M5 x 0.8	Rod Size	4 mm (2 rods)
Piston Area	56 mm2 (OUT) / 31 mm2 (IN)	Stroke Adjustable Range	0 to -5 mm
Non-rotating Accuracy	+/-0.1 deg	Allowable Kinetic Energy	0.0023 J
Ambient & Fluid Temperature	-10 to 60 C (no freezing)	Auto Switch	Without auto switch (with built-in magnet)
