SMC CXSM610 (CXSM6-10) - Dual Rod Cylinder, Slide Bearing, 6 mm Bore, 10 mm Stroke

Name: SMC CXSM610 (CXSM6-10) - Dual Rod Cylinder, Slide Bearing, 6 mm Bore, 10 mm Stroke
Brand: SMC
SKU: CXSM610
Price: 375.00 AED
Availability: BackOrder

Brand: SMC|Part No: CXSM610

AED 375.00

Quantity

Add to Quote

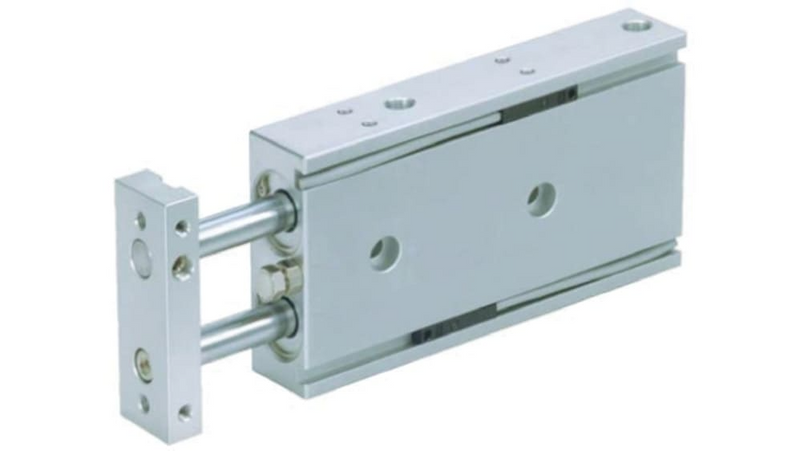

SMC CXSM610 Dual Rod Cylinder, Slide Bearing — 6 mm bore with 10 mm stroke. slide bearing guide, double acting, air (non-lube), 0.15 to 0.7 MPa operating pressure, M5 x 0.8 port, non-rotating accuracy of plus/minus 0.1 degrees, 28 N theoretical output at 0.5 MPa, 0.081 kg.

MPN: CXSM6-10 · SKU: CXSM610

CXSM6-10 Applications

The 6 mm bore with 10 mm stroke makes the SMC CXSM610 the smallest and lightest unit in this group at just 0.081 kg, sized for micro pick and place where every millimetre of panel space counts. It is used in semiconductor handling, electronics assembly and small medical device machines for component pickup, fine positioning and micro clamping. Despite its size the twin piston rods maintain plus/minus 0.1 degrees non-rotating accuracy, and the compact M5 x 0.8 ports suit small-bore tubing. Note the higher 0.15 MPa minimum operating pressure and the 300 mm/s piston speed limit specific to this 6 mm bore.

CXSM6-10 Specifications

Brand	SMC	Manufacturer Part No.	CXSM6-10
Product Type	Dual Rod Cylinder, Slide Bearing	Series	CXS Series (CXSM slide bearing)
Bore Size	6 mm	Stroke	10 mm
Bearing Type	Slide bearing (M)	Action	Double acting
Fluid	Air (non-lube)	Operating Pressure	0.15 to 0.7 MPa
Proof Pressure	1.05 MPa	Ambient and Fluid Temperature	-10 to 60 degC (no freezing)
Piston Speed	30 to 300 mm/s	Cushion	Rubber bumper
Non-rotating Accuracy	+/-0.1 deg	Port Size	M5 x 0.8
Theoretical Output at 0.5 MPa	28.0 N (OUT) / 15.5 N (IN)	Stroke Adjustable Range	0 to -5 mm
Auto Switch	Without auto switch (with built-in magnet)	Weight	0.081 kg
