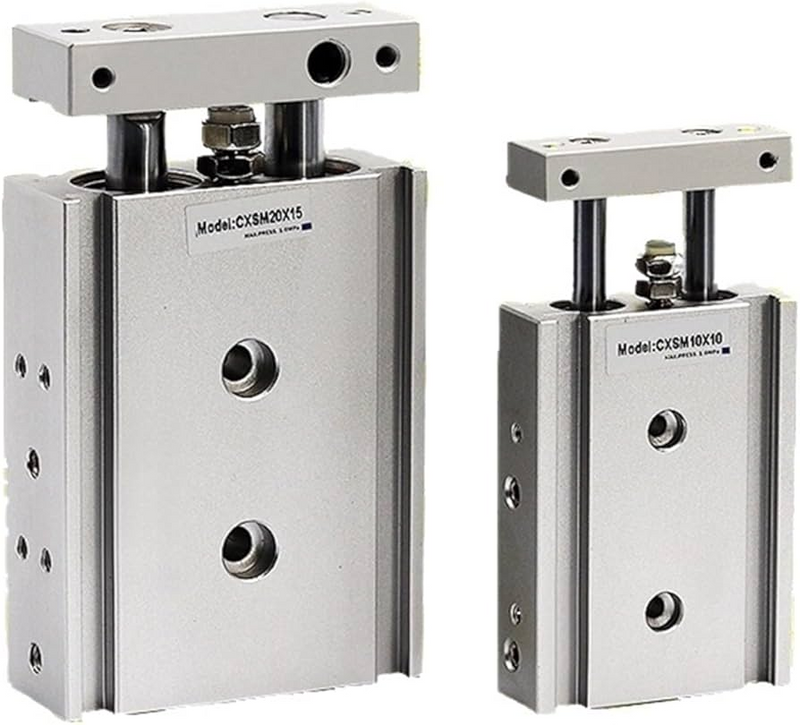

SMC CXSM2530 (CXSM25-30) - Dual Rod Cylinder, Slide Bearing, 25 mm Bore, 30 mm Stroke

Name: SMC CXSM2530 (CXSM25-30) - Dual Rod Cylinder, Slide Bearing, 25 mm Bore, 30 mm Stroke
Brand: SMC
SKU: CXSM2530
Price: 794.00 AED
Availability: BackOrder

Brand: SMC|Part No: CXSM2530

AED 794.00

Quantity

Add to Quote

SMC CXSM2530 Dual Rod Cylinder, Slide Bearing — 25 mm bore with 30 mm stroke. slide bearing guide, double acting, air (non-lube), 0.05 to 0.7 MPa operating pressure, Rc 1/8 port, non-rotating accuracy of plus/minus 0.1 degrees, 491 N theoretical output at 0.5 MPa, 0.72 kg.

MPN: CXSM25-30 · SKU: CXSM2530

CXSM25-30 Applications

The 25 mm bore with 30 mm stroke makes the SMC CXSM2530 the heavy-duty member of this group, delivering 491 N at 0.5 MPa against the 177 N of the 15 mm bore versions while keeping the same 30 mm travel. It is used in automotive component assembly, palletising and press-feed equipment for clamping, part pushing and lifting heavier tooling. The larger twin rods and slide bearing guide absorb side load and hold plus/minus 0.1 degrees non-rotating accuracy, so jigs stay square under load, and Rc 1/8 ports supply the greater air volume this bore needs.

CXSM25-30 Specifications

Brand	SMC	Manufacturer Part No.	CXSM25-30
Product Type	Dual Rod Cylinder, Slide Bearing	Series	CXS Series (CXSM slide bearing)
Bore Size	25 mm	Stroke	30 mm
Bearing Type	Slide bearing (M)	Action	Double acting
Fluid	Air (non-lube)	Operating Pressure	0.05 to 0.7 MPa
Proof Pressure	1.05 MPa	Ambient and Fluid Temperature	-10 to 60 degC (no freezing)
Piston Speed	30 to 600 mm/s	Cushion	Rubber bumper
Non-rotating Accuracy	+/-0.1 deg	Port Size	Rc 1/8
Theoretical Output at 0.5 MPa	491 N (OUT) / 378 N (IN)	Stroke Adjustable Range	0 to -5 mm
Auto Switch	Without auto switch (with built-in magnet)	Weight	0.72 kg
