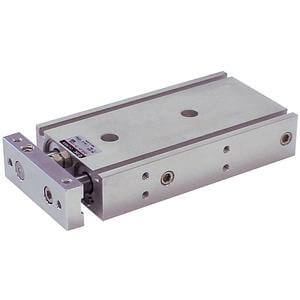

SMC CXSM1540 (CXSM15-40) - Dual Rod Cylinder, Slide Bearing, 15 mm Bore, 40 mm Stroke
SMC CXSM1540 Dual Rod Cylinder, Slide Bearing — 15 mm bore with 40 mm stroke. slide bearing guide, double acting, air (non-lube), 0.05 to 0.7 MPa operating pressure, Rc 1/8 port, non-rotating accuracy of plus/minus 0.1 degrees, 177 N theoretical output at 0.5 MPa, 0.33 kg.
MPN: CXSM15-40 · SKU: CXSM1540
CXSM15-40 Applications
The 15 mm bore with 40 mm stroke is the long-reach option in the 15 mm dual rod range, so the SMC CXSM1540 is specified when a pick and place head must clear taller parts, nests or guarding than the 25 and 30 mm stroke siblings allow. It is used in assembly cells, packaging machines and laboratory automation for vertical pick strokes, pusher and ejector duty, and tray loading. The twin rod slide bearing design keeps plus/minus 0.1 degrees non-rotating accuracy over the full 40 mm travel, and the stroke can be trimmed 0 to -5 mm with the adjustment bolt.
CXSM15-40 Specifications
| Brand | SMC | Manufacturer Part No. | CXSM15-40 |
| Product Type | Dual Rod Cylinder, Slide Bearing | Series | CXS Series (CXSM slide bearing) |
| Bore Size | 15 mm | Stroke | 40 mm |
| Bearing Type | Slide bearing (M) | Action | Double acting |
| Fluid | Air (non-lube) | Operating Pressure | 0.05 to 0.7 MPa |
| Proof Pressure | 1.05 MPa | Ambient and Fluid Temperature | -10 to 60 degC (no freezing) |
| Piston Speed | 30 to 700 mm/s | Cushion | Rubber bumper |
| Non-rotating Accuracy | +/-0.1 deg | Port Size | Rc 1/8 |
| Theoretical Output at 0.5 MPa | 177 N (OUT) / 126 N (IN) | Stroke Adjustable Range | 0 to -5 mm |
| Auto Switch | Without auto switch (with built-in magnet) | Weight | 0.33 kg |
