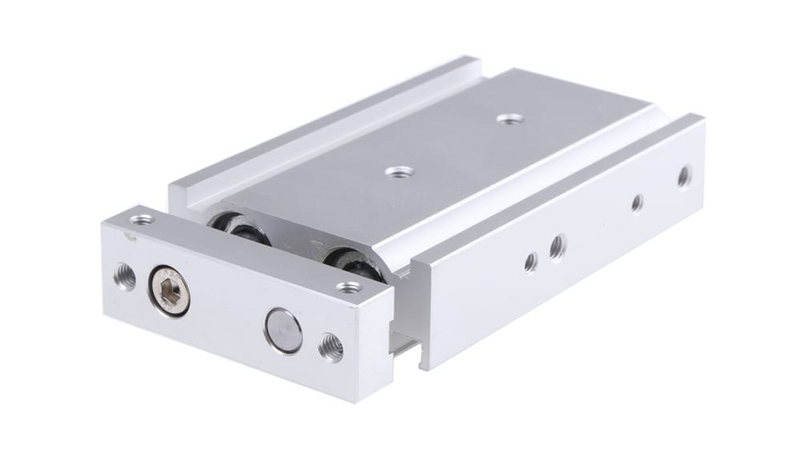

SMC CXSM1530 (CXSM15-30) - Dual Rod Cylinder, Slide Bearing, 15 mm Bore, 30 mm Stroke
SMC CXSM1530 Dual Rod Cylinder, Slide Bearing — 15 mm bore with 30 mm stroke. slide bearing guide, double acting, air (non-lube), 0.05 to 0.7 MPa operating pressure, Rc 1/8 port, non-rotating accuracy of plus/minus 0.1 degrees, 177 N theoretical output at 0.5 MPa, 0.30 kg.
MPN: CXSM15-30 · SKU: CXSM1530
CXSM15-30 Applications
The 15 mm bore with 30 mm stroke gives the SMC CXSM1530 5 mm more travel than the 25 mm stroke version at identical thrust, which suits transfer stations needing extra clearance over a fixture or conveyor rail. It is used in electronics assembly, medical device manufacturing and packaging machinery for part lifting, indexing and diverter gates. Two piston rods and a slide bearing guide hold plus/minus 0.1 degrees non-rotating accuracy under side load, so tooling repeats position without a separate guide unit, and the built-in magnet accepts SMC auto switches directly.
CXSM15-30 Specifications
| Brand | SMC | Manufacturer Part No. | CXSM15-30 |
| Product Type | Dual Rod Cylinder, Slide Bearing | Series | CXS Series (CXSM slide bearing) |
| Bore Size | 15 mm | Stroke | 30 mm |
| Bearing Type | Slide bearing (M) | Action | Double acting |
| Fluid | Air (non-lube) | Operating Pressure | 0.05 to 0.7 MPa |
| Proof Pressure | 1.05 MPa | Ambient and Fluid Temperature | -10 to 60 degC (no freezing) |
| Piston Speed | 30 to 700 mm/s | Cushion | Rubber bumper |
| Non-rotating Accuracy | +/-0.1 deg | Port Size | Rc 1/8 |
| Theoretical Output at 0.5 MPa | 177 N (OUT) / 126 N (IN) | Stroke Adjustable Range | 0 to -5 mm |
| Auto Switch | Without auto switch (with built-in magnet) | Weight | 0.30 kg |
CXSM15-30 Datasheet & Manual
