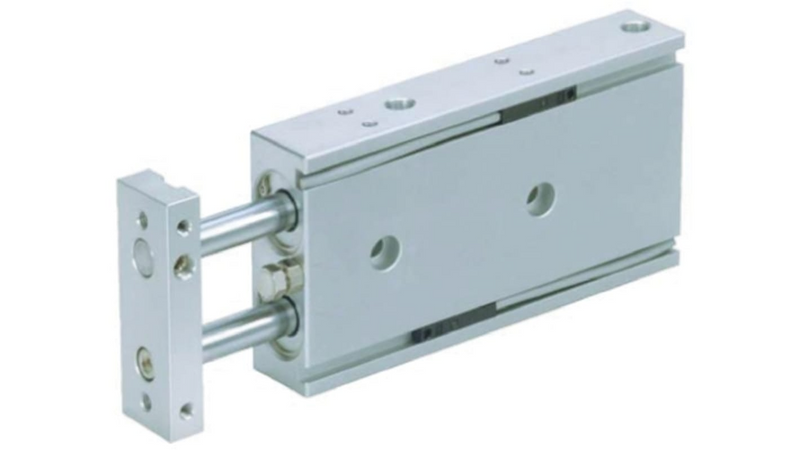

SMC CXSM1525 (CXSM15-25) - Dual Rod Cylinder, Slide Bearing, 15 mm Bore, 25 mm Stroke
SMC CXSM1525 Dual Rod Cylinder, Slide Bearing — 15 mm bore with 25 mm stroke. slide bearing guide, double acting, air (non-lube), 0.05 to 0.7 MPa operating pressure, Rc 1/8 port, non-rotating accuracy of plus/minus 0.1 degrees, 177 N theoretical output at 0.5 MPa, 0.29 kg.
MPN: CXSM15-25 · SKU: CXSM1525
CXSM15-25 Applications
The 15 mm bore with 25 mm stroke makes the SMC CXSM1525 the short-stroke member of the 15 mm dual rod family, chosen where a guided pick and place head must work inside a shallow envelope. It is used in electronics assembly, packaging lines and small-parts handling machines for vertical lift stations, gate and stopper actuation, and light clamping duties. The twin piston rods hold plus/minus 0.1 degrees non-rotating accuracy without any external guide, so grippers and vacuum pads stay aligned through every cycle, while Rc 1/8 ports and the built-in magnet keep plumbing and auto switch mounting simple.
CXSM15-25 Specifications
| Brand | SMC | Manufacturer Part No. | CXSM15-25 |
| Product Type | Dual Rod Cylinder, Slide Bearing | Series | CXS Series (CXSM slide bearing) |
| Bore Size | 15 mm | Stroke | 25 mm |
| Bearing Type | Slide bearing (M) | Action | Double acting |
| Fluid | Air (non-lube) | Operating Pressure | 0.05 to 0.7 MPa |
| Proof Pressure | 1.05 MPa | Ambient and Fluid Temperature | -10 to 60 degC (no freezing) |
| Piston Speed | 30 to 700 mm/s | Cushion | Rubber bumper |
| Non-rotating Accuracy | +/-0.1 deg | Port Size | Rc 1/8 |
| Theoretical Output at 0.5 MPa | 177 N (OUT) / 126 N (IN) | Stroke Adjustable Range | 0 to -5 mm |
| Auto Switch | Without auto switch (with built-in magnet) | Weight | 0.29 kg |
CXSM15-25 Datasheet & Manual
