SMC CS1GN16050 (CS1GN160-50) - Air Cylinder, 160 mm Bore, 50 mm Stroke

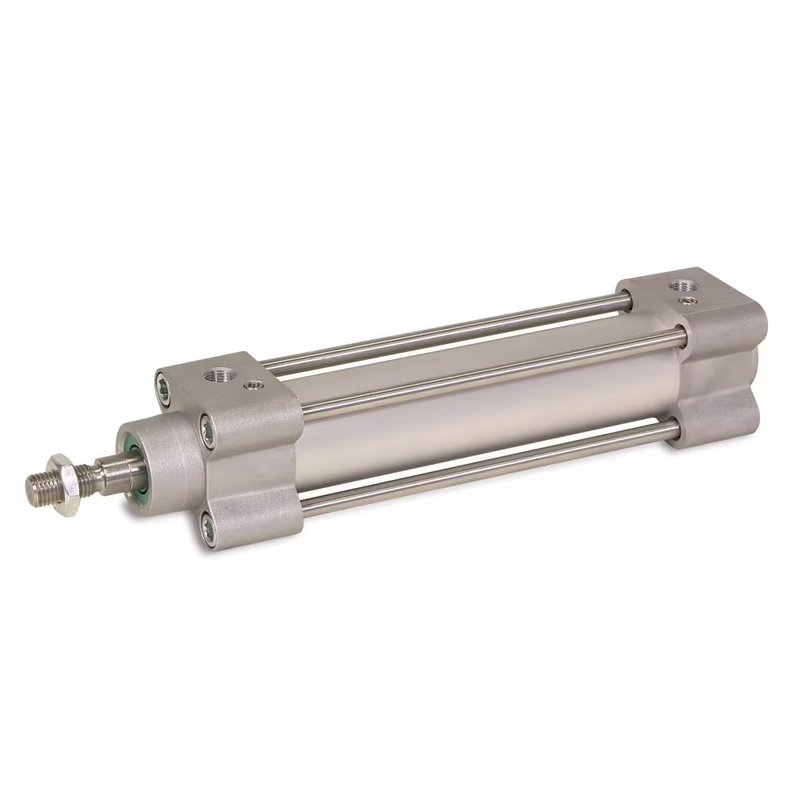

SMC CS1GN16050 Air Cylinder — 160 mm bore with 50 mm stroke and head flange mounting. double acting single rod, non-lube, head flange style mounting, Rc port thread, air cushion both ends, 0.97 MPa max. operating pressure, aluminium tube.
MPN: CS1GN160-50 · SKU: CS1GN16050
CS1GN160-50 Applications
The SMC CS1GN16050 is a 160 mm bore CS1 air cylinder with a short 50 mm stroke and head flange mounting, giving high thrust over a compact travel. It is used in heavy industry such as presses, steel and foundry plant, and large material handling machinery. It is suited for clamping and pressing, gate and damper actuation, and pusher or ejector duty. Its large bore develops substantial force at moderate pressure, while the tie-rod construction and air cushioning at both ends absorb the shock of a heavy load at end of stroke.
CS1GN160-50 Specifications
| Brand | SMC | Manufacturer Part No. | CS1GN160-50 |
| Product Type | Air Cylinder | Series | CS1 Series |
| Type | Large bore air cylinder, square cover, tie-rod type | Action | Double acting, single rod |
| Mounting Style | G: Head flange style | Lubrication Type | N: Non-lube |
| Bore Size | 160 mm | Cylinder Stroke | 50 mm |
| Port Thread Type | Rc | Cushion | Air cushion, both ends |
| Fluid | Air | Proof Pressure | 1.57 MPa |
| Max. Operating Pressure | 0.97 MPa | Min. Operating Pressure | 0.05 MPa |
| Piston Speed | 50 to 500 mm/s | Stroke Length Tolerance | +1.0 mm (250 st or less) |
| Tube Material | Aluminium tube (bore 160, stroke 1200 mm or less) | Class 2 Pressure Vessel | Applicable |
| Made to Order | Standard |
CS1GN160-50 Datasheet & Manual
Download Datasheet & ManualSMC CS1GN16050 · PDF · Official SMC documentTrusted by
