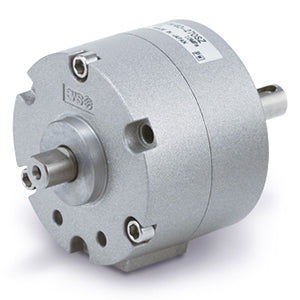

SMC CRBU2W20180SZ (CRBU2W20-180SZ) - Free Mount Rotary Actuator, Vane Type, Size 20, 180 deg Rotating Angle

Name: SMC CRBU2W20180SZ (CRBU2W20-180SZ) - Free Mount Rotary Actuator, Vane Type, Size 20, 180 deg Rotating Angle
Brand: SMC
SKU: CRBU2W20180SZ
Price: 699.00 AED
Availability: BackOrder

Brand: SMC|Part No: CRBU2W20180SZ

AED 699.00

Quantity

Add to Quote

SMC CRBU2W20180SZ Free Mount Rotary Actuator, Vane Type — free mount size 20 body with 180 deg rotating angle. free mount type, single vane, double shaft with single flat, side ported, M5 x 0.8 ports, 1.0 MPa max. operating pressure, air (non-lube).

MPN: CRBU2W20-180SZ · SKU: CRBU2W20180SZ

CRBU2W20-180SZ Applications

The SMC CRBU2W20180SZ is the free mount size 20 rotary actuator set for a 180 deg rotating angle, and unlike the basic-mount CRB2 it can be installed in one of six directions with the starting position chosen to suit the machine. It is used in compact assembly, electronics and packaging equipment for half-turn inverting and transferring. It is suited for flipping small parts, rotating sensors or nozzles, and half-turn indexing in tight spaces. The free mount plate removes the need for a custom bracket when mounting orientation is constrained.

CRBU2W20-180SZ Specifications

Brand	SMC	Manufacturer Part No.	CRBU2W20-180SZ
Product Type	Rotary Actuator, Vane Type	Series	CRBU2 Series
Shaft Type	W: Double shaft with single flat	Size	20
Rotating Angle	180 deg	Vane Type	S: Single vane
Connecting Port Location	Side ported	Port Size	M5 x 0.8
Fluid	Air (Non-lube)	Proof Pressure	1.5 MPa
Max. Operating Pressure	1.0 MPa	Min. Operating Pressure	0.15 MPa
Ambient and Fluid Temperature	5 to 60 deg C	Allowable Radial Load	25 N
Allowable Thrust Load	20 N	Allowable Kinetic Energy	0.003 J
Mounting	Free mount type (direct mounting in one of six ways)	Auto Switch	Without auto switch (built-in magnet)
Angle Adjuster	None	Made to Order	Standard
Weight (body)	129 g
