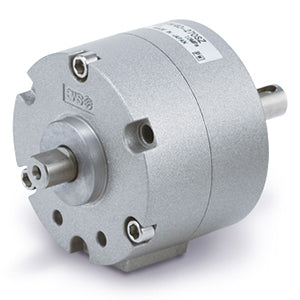

SMC CRB2BW40270SZ (CRB2BW40-270SZ) - Rotary Actuator, Vane Type, Size 40, 270 deg Rotating Angle
SMC CRB2BW40270SZ Rotary Actuator, Vane Type — size 40 body, the largest in the series, with 270 deg rotating angle. single vane, long shaft key with short shaft single flat, basic mounting, side ported, M5 x 0.8 ports, 1.0 MPa max. operating pressure, air (non-lube).
MPN: CRB2BW40-270SZ · SKU: CRB2BW40270SZ
CRB2BW40-270SZ Applications
The SMC CRB2BW40270SZ is the size 40 CRB2 rotary actuator, the largest frame in the series, specified for a 270 deg rotating angle. It is used in packaging, automotive and general assembly machinery where a wide swing must move a heavier load. It is suited for turning over larger components, driving indexing tables, and rotating gripper assemblies on transfer arms. Its size 40 body accepts the highest shaft loads and kinetic energy in the range, so it handles inertia that would overrun the smaller sizes.
CRB2BW40-270SZ Specifications
| Brand | SMC | Manufacturer Part No. | CRB2BW40-270SZ |
| Product Type | Rotary Actuator, Vane Type | Series | CRB2 Series |
| Mounting Style | B: Basic | Shaft Type | W: Long shaft key, short shaft with single flat (size 40) |
| Size | 40 | Rotating Angle | 270 deg |
| Vane Type | S: Single vane | Connecting Port Location | Side ported |
| Port Size | M5 x 0.8 | Fluid | Air (Non-lube) |
| Proof Pressure | 1.5 MPa | Max. Operating Pressure | 1.0 MPa |
| Min. Operating Pressure | 0.15 MPa | Ambient and Fluid Temperature | 5 to 60 deg C |
| Allowable Radial Load | 60 N | Allowable Thrust Load | 40 N |
| Allowable Kinetic Energy | 0.04 J | Rotation Time Adjustment Range | 0.07 to 0.5 s/90 deg |
| Auto Switch | Without auto switch (built-in magnet) | Angle Adjuster | None |
| Made to Order | Standard | Weight (body) | 363 g |
