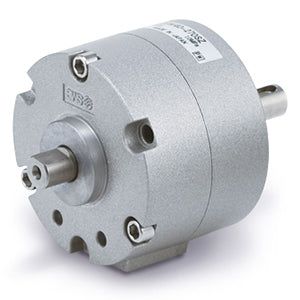

SMC CRB2BW3090SZ (CRB2BW30-90SZ) - Rotary Actuator, Vane Type, Size 30, 90 deg Rotating Angle
SMC CRB2BW3090SZ Rotary Actuator, Vane Type — size 30 body with 90 deg rotating angle. single vane, double shaft with single flat, basic mounting, side ported, M5 x 0.8 ports, 1.0 MPa max. operating pressure, air (non-lube).
MPN: CRB2BW30-90SZ · SKU: CRB2BW3090SZ
CRB2BW30-90SZ Applications
The SMC CRB2BW3090SZ is the size 30 CRB2 rotary actuator specified for a 90 deg rotating angle, the quarter-turn variant of the family. It is used in automated assembly, packaging and machine tool applications for quarter-turn indexing, clamping and valve actuation. It is suited for turning workpieces through a right angle, actuating stoppers and diverter arms, and driving small ball or butterfly valves. The shorter 90 deg sweep reaches its end positions faster than the wider-angle models, making it the choice for high-cycle quarter-turn work.
CRB2BW30-90SZ Specifications
| Brand | SMC | Manufacturer Part No. | CRB2BW30-90SZ |
| Product Type | Rotary Actuator, Vane Type | Series | CRB2 Series |
| Mounting Style | B: Basic | Shaft Type | W: Double shaft with single flat |
| Size | 30 | Rotating Angle | 90 deg |
| Vane Type | S: Single vane | Connecting Port Location | Side ported |
| Port Size | M5 x 0.8 | Fluid | Air (Non-lube) |
| Proof Pressure | 1.5 MPa | Max. Operating Pressure | 1.0 MPa |
| Min. Operating Pressure | 0.15 MPa | Ambient and Fluid Temperature | 5 to 60 deg C |
| Allowable Radial Load | 30 N | Allowable Thrust Load | 25 N |
| Allowable Kinetic Energy | 0.02 J | Auto Switch | Without auto switch (built-in magnet) |
| Angle Adjuster | None | Made to Order | Standard |
| Weight (body) | 199 g |
