SMC CRB2BW30270SZ (CRB2BW30-270SZ) - Rotary Actuator, Vane Type, Size 30, 270 deg Rotating Angle

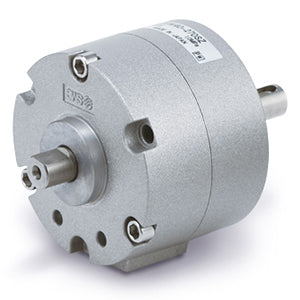

SMC CRB2BW30270SZ Rotary Actuator, Vane Type — size 30 body with 270 deg rotating angle. single vane, double shaft with single flat, basic mounting, side ported, M5 x 0.8 ports, 1.0 MPa max. operating pressure, air (non-lube).
MPN: CRB2BW30-270SZ · SKU: CRB2BW30270SZ
CRB2BW30-270SZ Applications
The SMC CRB2BW30270SZ is the size 30 CRB2 rotary actuator specified for a 270 deg rotating angle, the widest single-vane swing in the range. It is used in automated assembly, packaging and material handling machinery for part turnover, indexing and diverting. It is suited for flipping components between stations, opening and closing gates or flaps, and rotating fixtures on pick-and-place arms. Its compact vane construction delivers a full 270 deg sweep from a single, direct-mounted body without the extra length a rack-and-pinion unit would require.
CRB2BW30-270SZ Specifications
| Brand | SMC | Manufacturer Part No. | CRB2BW30-270SZ |
| Product Type | Rotary Actuator, Vane Type | Series | CRB2 Series |
| Mounting Style | B: Basic | Shaft Type | W: Double shaft with single flat |
| Size | 30 | Rotating Angle | 270 deg |
| Vane Type | S: Single vane | Connecting Port Location | Side ported |
| Port Size | M5 x 0.8 | Fluid | Air (Non-lube) |
| Proof Pressure | 1.5 MPa | Max. Operating Pressure | 1.0 MPa |
| Min. Operating Pressure | 0.15 MPa | Ambient and Fluid Temperature | 5 to 60 deg C |
| Allowable Radial Load | 30 N | Allowable Thrust Load | 25 N |
| Allowable Kinetic Energy | 0.02 J | Auto Switch | Without auto switch (built-in magnet) |
| Angle Adjuster | None | Made to Order | Standard |
| Weight (body) | 189 g |
